Image, Data Sheet & Marketing Description may differ from the actual product of part# LTU-PRO
Mfr Part#: LTU-PRO
Also Known As#: UBI-LTUPRO
Price:$208.10 Availability:399 units In Stock Condition:
New
Warranty: With Original Manufacturer Warranty
Manufacturer Part#
UPC
Weight (lb)
MSRP
LTU-PRO
0817882029223
1
DIMENSION
UNSPSC
HARMONIZATION CODE
COUNTRY OF ORIGIN
8517620090
CN
General Information:
Manufacturer: Ubiquiti Inc.
Manufacturer Part Number: LTU-PRO
Manufacturer Website Address: http://www.ui.com
Brand Name: Ubiquiti
Product Model: LTUPro

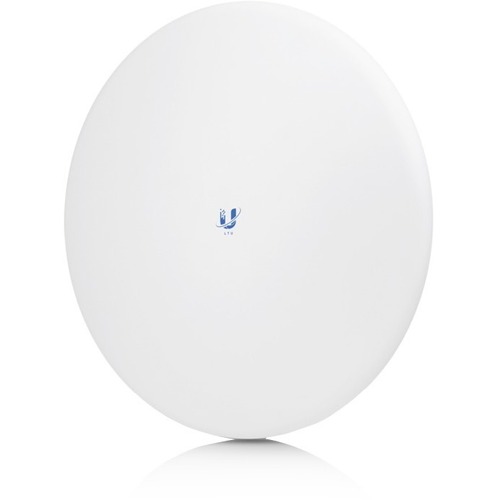

Product Name: 5 GHz PtMP LTU Client Radio with Advanced RF Performance
Marketing Information:
Featuring an integrated 24 dBi dish antenna, the LTU Pro is a 5 GHz subscriber station that functions as a CPE (Customer Premises Equipment) in a Point-to-MultiPoint (PtMP) environment with the LTU Rocket® as the basestation.
Proprietary LTU Technology
Based on Ubiquiti's LTU technology, the LTU Pro is not impeded by the limitations of standard 802.11 Wi-Fi technology. Its custom LTU silicon and radio architecture provide up to 600+ Mbps of real TCP/IP throughput and modulation rates of up to 4096QAM.
CPE Modes
The LTU Pro supports both bridged and built-in hardware NAT router modes to suit your specific deployment.
Frequency Split
The LTU Pro can use different frequencies for TX and RX to avoid interference.
Robust Pole Mount Design.
The LTU Pro is designed for quick yet reliable mounting on a pole. It features a built-in mechanical tilt; the mounting bracket allows convenient adjustments to the elevation with a range of ± 15°.
Channel Width Flexibility
Channel width flexibility allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference. Channel width options include the following:
10 MHz
20 MHz
30 MHz
40 MHz
50 MHz
Up to 100 MHz
Auto Power Adjustments
By default, the Auto Output Power option allows the LTU Pro to set the output power (EIRP) to the appropriate level.
Signal Control
The LTU Pro's TX output power is controlled by the AP's target TX output power. A PtMP network can manage signal levels to enhance network stability and achieve optimal wireless performance with the highest possible modulation.
Convenient Configuration
To manage the LTU Pro, you have two options: the LTU Configuration Interface and Ubiquiti Network Management System (UNMS™). Either option lets you manually configure the LTU Pro.
Within the LTU Configuration Interface, you can manually configure the LTU Pro or manage it from the AP side using the Find My AP feature. The LTU Pro will automatically scan for APs using the same channel bandwidth. Select the appropriate AP and then use it to configure the LTU Pro.
Integrated GPS
Built-in GPS improves synchronization and allows map and Fresnel views on the Dashboard.
