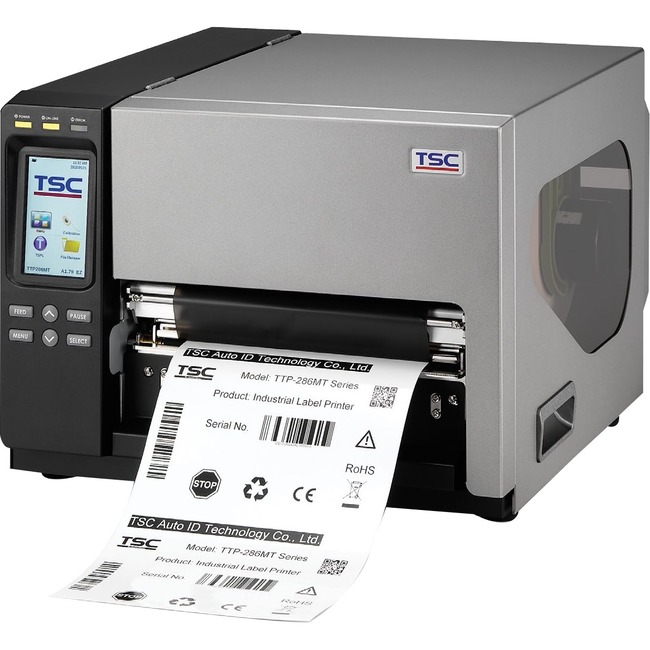

99-135A001-0011 - TSC TTP 384M Series Printers
"The affordable and easy-to-use TTP-384M wide-format thermal transfer printer is ideally suited for compliance labeling, inventory control, drum labeling, warning signs and a host of other signage solutions."
Manufacturer: TSC Item Description: TTP-384MT,Touch LCD, USB+RS-232+Parallel - 99-135A001-0011 TTP-384MT, Touch LCD, USB + RS-232 + Parallel + Ethernet + USB host, Regular Cutter, US - 99-135A001-0011
Image, Data Sheet & Marketing Description may differ from the actual product of part# 99-135A001-0011
Mfr Part#: 99-135A001-0011
Also Known As#: TSC-99135A0010011
Price:
$4,554.78
Availability: Dropship / Preorder
Condition:
Warranty: With Original Manufacturer Warranty
Manufacturer Part#
UPC
Weight (lb)
MSRP
99-135A001-0011
61
$4,982.00
DIMENSION
UNSPSC
HARMONIZATION CODE
COUNTRY OF ORIGIN
43212115
8443321050
TW
General Information:
Manufacturer : TSC Auto ID Technology Co., Ltd
Manufacturer Part Number : 99-135A001-0011
Manufacturer Website Address : http://www.tscprinters.com
Product Series : TTP-286MT
Product Name : Industrial Thermal Transfer Bar Code Printer
Product Type : Direct Thermal/Thermal Transfer Printer
Technical Information:
Recommended Use : Receipt Print
Print Color Capability : Monochrome
Maximum Mono Print Speed : 4 in/s
Maximum Print Resolution (dpi) : 300
Maximum Print Length : 16.67 ft
Maximum Print Width : 8.64"
Barcode Symbology Supported : Code 39
Barcode Symbology Supported : Code 93
Barcode Symbology Supported : Code 128 UCC
Barcode Symbology Supported : Code 128 (A/B/C)
Barcode Symbology Supported : Codabar
Barcode Symbology Supported : Interleaved 2 of 5
Barcode Symbology Supported : EAN-8
Barcode Symbology Supported : EAN-13
Barcode Symbology Supported : UPC-A/E
Barcode Symbology Supported : UPC-5 Digits Add-on
Barcode Symbology Supported : UPC -2 Digits Add-on
Barcode Symbology Supported : MSI
Barcode Symbology Supported : Plessey
Barcode Symbology Supported : POSTNET
Barcode Symbology Supported : RSS Stacked
Barcode Symbology Supported : GS1 DataBar
Barcode Symbology Supported : PDF-417
Barcode Symbology Supported : Code 11
Barcode Symbology Supported : Maxi Code
Barcode Symbology Supported : Data Matrix
Barcode Symbology Supported : QR Code
Barcode Symbology Supported : AZTEC
Connectivity Technology : Wired
Application/Usage : Industrial
Application/Usage : Desktop
Memory:
Standard Memory : 256 MB
Interfaces/Ports:
Parallel Port : Yes
Network & Communication:
Ethernet : Yes
Ethernet Technology : Ethernet
Display & Graphics:
Display Screen : Yes
Media Types & Handling:
Media Type : Label
Media Type : Continuous Label
Media Type : Die-cut Label
Media Sensor : Multi-position Transmissive/Gap Sensor
Media Sensor : Moveable Reflective/Black Mark Sensor
Media Sensor : Head Open Sensor
Maximum Roll Diameter : 8.20"
Maximum Label Width : 9.50"
Maximum Label Length : 16.67 ft
Fonts & Emulation:
Language Emulation : TSPL-EZ
Language Emulation : ZPL II
Reliability:
Print Head Life : 50km
Power Description:
Power Source : AC Supply
Environmental Conditions:
Operating Temperature : 41°F (5°C) - 104°F (40°C)
Operating Relative Humidity : 20% - 85%
Storage Temperature : 14°F (-10°C) - 140°F (60°C)
Storage Relative Humidity : 10% - 90%
Physical Characteristics:
Height : 13.2"
Weight (Approximate) : 52.25 lb
Miscellaneous:
Optional Connectivity : Bluetooth
Optional Connectivity : Wireless LAN
Certifications & Standards : FCC Class A, CE Class A, UL, CUL, TÜV/Safety
Environmentally Friendly : Yes
