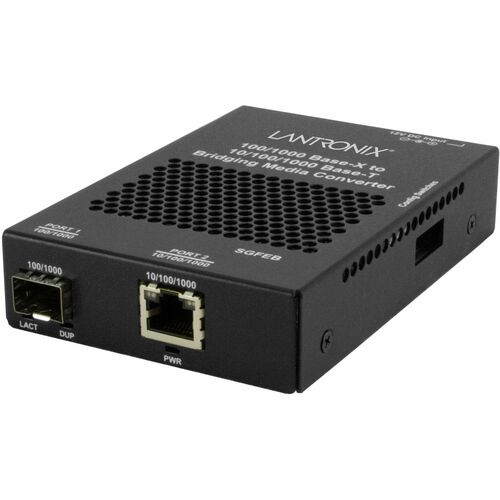

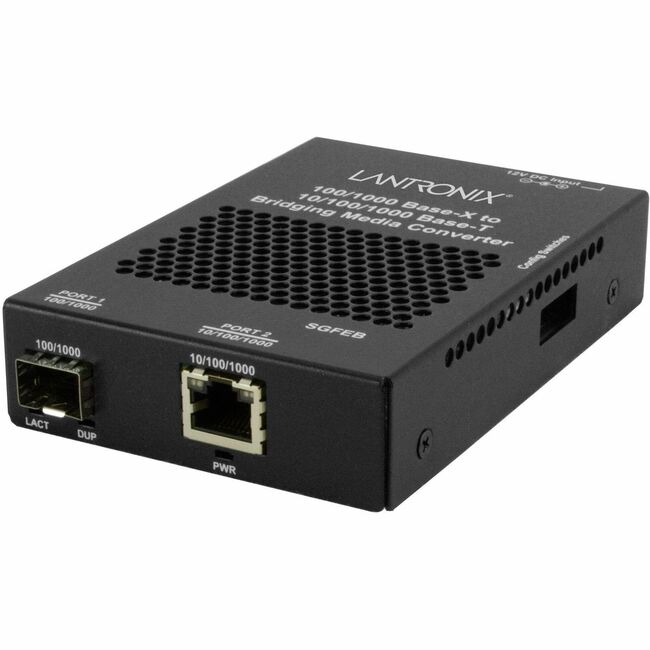

Product Name: Stand-alone Gigabit Ethernet Media and Rate Converter
Marketing Information: The SGFEB10xx-130 is a stand-alone media converter that provides an interface between 10/100/1000Base-T ports and 1000Base-SX/LX ports, allowing users to integrated fiber optic cabling into 10/100/1000 copper environments. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10/100 copper devices to connect to 1000Base-SX/LX fiber.
Product Type: Transceiver/Media Converter
Interfaces/Ports:
Total Number of Ports: 2
Network (RJ-45): Yes
DVI: No
USB: No
Management Port: No
Number of LC Ports: 1
LC Port Type: Duplex
Number of Network (RJ-45) Ports: 1
Media & Performance:
Media Type Supported: Twisted Pair
Media Type Supported: Optical Fiber
Fiber Mode Supported: Single-mode
Fiber Optic Wavelength: 1310 nm
Maximum Distance Supported: 6.21 Mile
Network & Communication:
Ethernet Technology: Gigabit Ethernet
Network Technology: 1000Base-LX
Network Technology: 10/100/1000Base-T
Power Description:
Power Source: Power Supply
Physical Characteristics:
Form Factor: Wall Mountable
Form Factor: Standalone
Form Factor: Rail-mountable
Height: 1"
Width: 3.3"
Depth: 4.8"
Weight (Approximate): 2 lb
Miscellaneous:
Package Contents:
Stand-alone Gigabit Ethernet Media and Rate Converter
Power Supply
Environmentally Friendly: Yes
Environmental Certification: RoHS
Environmental Certification: WEEE
Warranty:
Limited Warranty: Lifetime
