Marketing Information: Eaton Metered Input ePDUs provide remote monitoring of the current draw of individual sections via network communication. This capability, combined with state-of-the-art software allows you to aggregate the information from many ePDUs in one location. A local display is also available for phase balancing and for easy start-up and provisioning of servers. New ePDU G3 Metered Input models feature best-in-class technologies, including ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address.
Product Type: PDU
Technical Information:
Plug/Connector Type: NEMA L5-30P
Plug/Connector Detail: 1 x NEMA L5-30P
Receptacle Type: NEMA 5-20R
Receptacle Detail: 12 x NEMA 5-20R
Power Description:
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Power Rating (Watt): 2880 W
Input Current: 24 A
Interfaces/Ports:
Network (RJ-45): Yes
Physical Characteristics:
Mounting Orientation: Horizontal
Rack Height: 1U
Height: 19"
Width: 1.7"
Depth: 8"
Miscellaneous:
Package Contents:
ePDU Metered EMIT03-10 12-Outlet PDU
SPK021-Installation
SPK013-Network
Country of Origin: United States
Warranty:
Limited Warranty: 3 Year

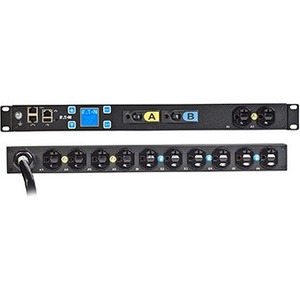

EMIT03-10 Image Gallery:
