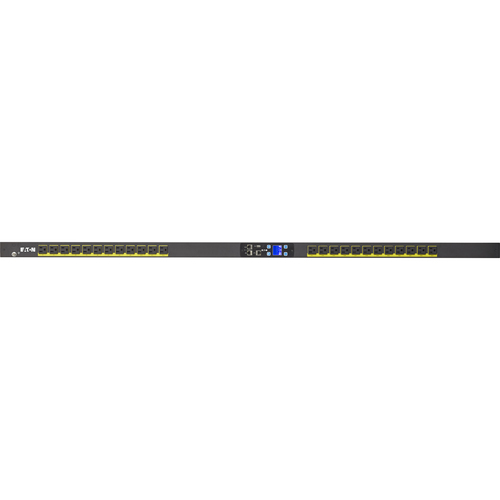

Marketing Information: Eaton G3 Metered Input ePDUs provide a best-in-class design featureing billing grade accuracy monitoring of input and branch circuits on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Designed for IT and data center applications means high reliability and a robust design made for high operating temperatures found in containment or networking closets.
Advanced LCD pixel display for local display of current, voltage, power, energy and menu setup of parameters such as IP address or display rotation
High operating temperature (140F / 60C) for containment or hot network closet environments
Hot-swap meter for servicability of without removing power to the rack
+/- 1% billing grade accuracy for high accuracy reporting of energy usage
Daisy chain of IP addresses allows four devices to share one network connection
Color coded outlet sections simplify load balancing
Product Type: PDU
Technical Information:
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 24 x NEMA 5-15R
Power Description:
Input Voltage: 120 V AC
Power Rating (Watt): 1440 W
Input Current: 12 A
Interfaces/Ports:
Network (RJ-45): Yes
Physical Characteristics:
Mount Type: Rack-mountable
Rack Height: 38U
Height: 66.5"
Width: 2.1"
Depth: 2.1"
Weight (Approximate): 12.50 lb
Miscellaneous:
Country of Origin: China
Warranty:
Limited Warranty: 3 Year
