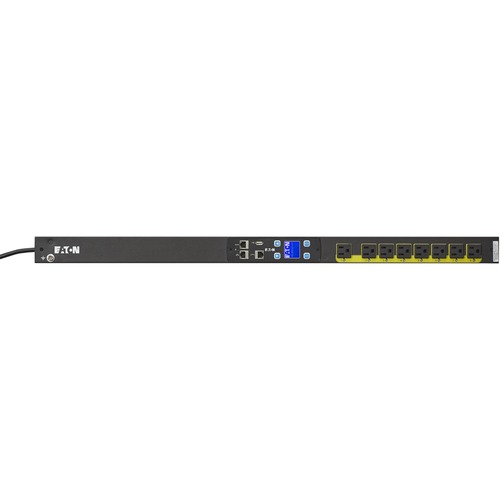

Marketing Information: Eaton ePDU G3 Managed technology provides a best-in-class design featuring billing grade accuracy monitoring at the outlet level on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Outlet switching allows for on, off or reboot of individual outlets, which reduces the cost of managing remote or local IT data center environments. The robust design is UL rated to operate at 140 degrees F (60 degrees C) ambient operating temperature for containment and high temperature environments.
Outlet switching for on, off and reboot control to reduce management costs
Outlet level metering to +/- 1% billing grade accuracy for customer billing or level 3 PUE calculations
LCD pixel display with hot-swap capability enables load balancing and local setup of key parameters such as IP address and display orientation
High operating temperature (140 degrees F / 60 degrees C) for containment or hot network closet environments
Daisy chain of IP addresses allows four devices to share one network connection to reduce network install costs by up to 75%
120 volt power distribution to 5-20R outlets which accept standard 5-15P wall plug
Product Type: PDU
Technical Information:
PDU Type: Switched
Plug/Connector Type: NEMA 5-15P
Plug/Connector Detail: 1 x NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 8 x NEMA 5-15R
Power Description:
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Power Rating (Watt): 1440 W
Input Current: 12 A
Interfaces/Ports:
Network (RJ-45): Yes
Physical Characteristics:
Mounting Orientation: Vertical
Mount Type: Rack-mountable
Rack Height: 21U
Height: 35.5"
Width: 2.1"
Depth: 2.6"
Miscellaneous:
Package Contents:
ePDU Managed EMA111-10 8-Outlets PDU
ePDU G3 Installation Spare Pack
ePDU G3 Network Spare Part Pack
Country of Origin: Morocco
Warranty:
Limited Warranty: 3 Year
