Marketing Information: Eaton ePDU G3 Managed technology provides a best-in-class design featuring billing grade accuracy monitoring at the outlet level on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Outlet switching allows for on, off or reboot of individual outlets, which reduces the cost of managing remote or local IT data center environments. The robust design is UL rated to operate at 140 degrees F (60 degrees C) ambient operating temperature for containment and high temperature environments.
Outlet switching for on, off and reboot control to reduce management costs
Outlet level metering to +/- 1% billing grade accuracy for customer billing or level 3 PUE calculations
LCD pixel display with hot-swap capability enables load balancing and local setup of key parameters such as IP address and display orientation
High operating temperature (140 degrees F / 60 degrees C) for containment or hot network closet environments
Daisy chain of IP addresses allows four devices to share one network connection to reduce network install costs by up to 75%
120 volt power distribution to 5-20R outlets which accept standard 5-15P wall plug
Product Type: PDU
Technical Information:
PDU Type: Switched
Plug/Connector Type: NEMA L5-30P
Plug/Connector Detail: 1 x NEMA L5-30P
Receptacle Type: NEMA 5-20R
Receptacle Detail: 24 x NEMA 5-20R
Power Description:
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Power Rating (Watt): 2880 W
Input Current: 24 A
Interfaces/Ports:
Network (RJ-45): Yes
Physical Characteristics:
Product Color: Black
Mounting Orientation: Vertical
Rack Height: 38U
Height: 66.5"
Width: 2.1"
Depth: 2.6"
Miscellaneous:
Country of Origin: China
Warranty:
Limited Warranty: 3 Year

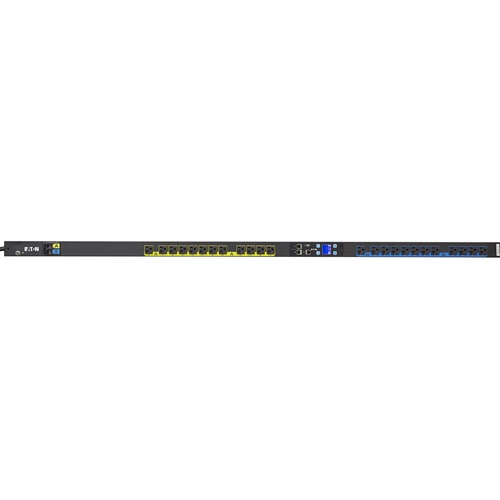

EMA108-10 Image Gallery:
Eaton [EMA108-10]
Eaton ePDUs (EMA108-10)
EPDU MA 38U-A IN: L5-30P 24A 1P OUT: 24X (EMA108-10)
EPDU MA 38U-A IN: L5-30P 24A 1P OUT: 24X {EMA108-10}
