Marketing Information: Eaton G3 Basic ePDUs provide reliable power distribution for IT and data center applciations. Desgined to operate at high temperatures for high reliability and made from light-weight aluminum for ease of installation.
IEC outlet grip plug retention secures plugs in place using standard cables
High operating temperature (140F / 60C) for containment or hot network closet environments
Color coded outlet sections simplify load balancing
Low profile form factor reduces interference into the rail space
Ease of installation using pre-installed buttons for tool-less mounting
Designed for mission critical IT or data center applications
Product Type: PDU
Technical Information:
Plug/Connector Type: NEMA L21-20P
Receptacle Type: IEC 60320 C13
Receptacle Type: IEC 60320 C19
Receptacle Type: NEMA 5-20R
Receptacle Detail: 30 x IEC 60320 C13
Receptacle Detail: 6 x IEC 60320 C19
Receptacle Detail: 1 x NEMA 5-20R
Power Description:
Input Voltage: 120 V AC
Input Voltage: 230 V AC
Input Voltage Range: 120 V AC - 208 V AC
Power Rating (Watt): 8640 W
Input Current: 24 A
Physical Characteristics:
Mount Type: Rack-mountable
Rack Height: 38U
Height: 66.5"
Width: 2.1"
Depth: 2.1"
Weight (Approximate): 18 lb
Warranty:
Limited Warranty: 3 Year

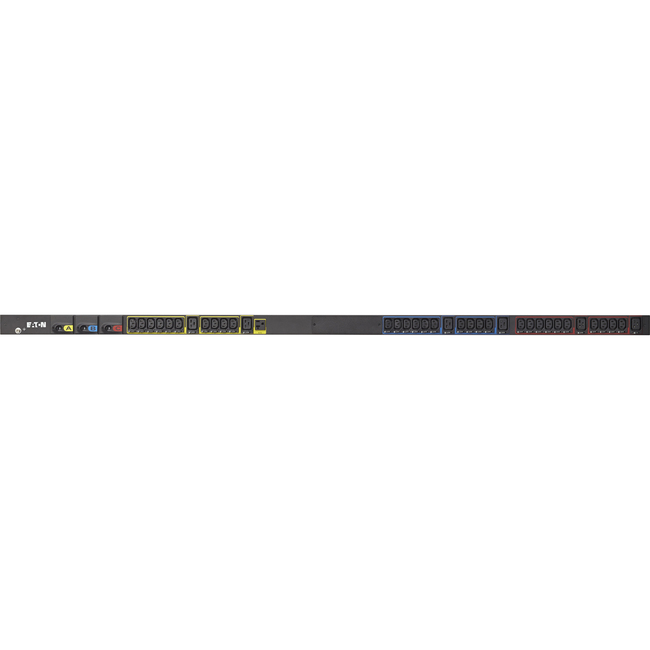

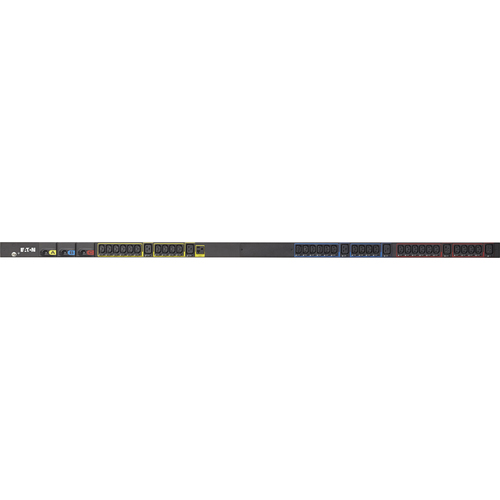

EBA310-10 Image Gallery:
Eaton [EBA310-10]
Eaton ePDUs (EBA310-10)
EPDU BA 38U-A IN: L21-30P 24A 3P OUT: 30 (EBA310-10)
EPDU BA 38U-A IN: L21-30P 24A 3P OUT: 30 {EBA310-10}
