Super easy to install and use, the 2" PC23d is an intuitive bar code printer that is both modular and extremely compact, ensuring that it will fit your business needs today, and tomorrow. Ideal for healthcare, as well as small and medium business settings
Manufacturer:Honeywell Scanning n Mobility
Item Description:PC23d, Display, adjustable gapRTC, 203 d - PC23DA0010021

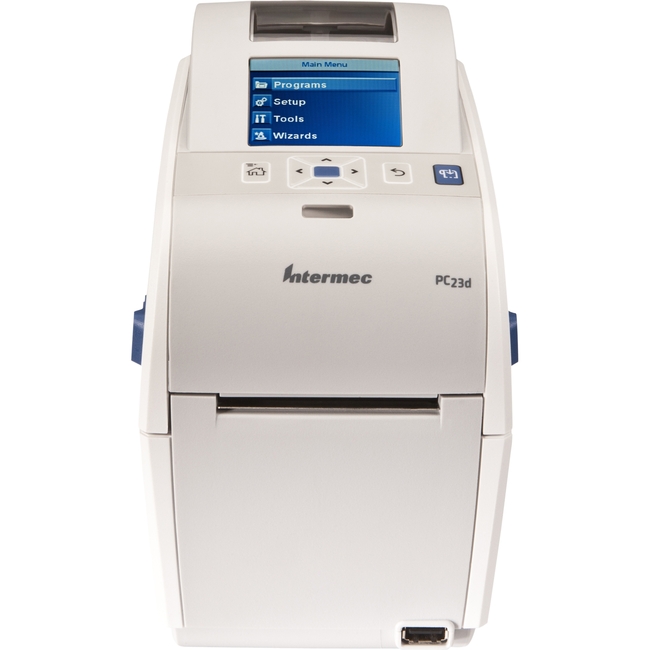

PC23d Direct Thermal Desktop Printer (203 dpi, Display, Adjustable Gap RTC, Power Cord) - PC23DA0010021
Image, Data Sheet & Marketing Description may differ from the actual product of part# PC23DA0010021
Designed to set a new standard in user friendliness and flexibility, the 2"-wide Intermec PC23d direct thermal printer provides an intuitive label-printing solution. PC23d features a multi-language LCD or Icon-graphics user interface for maximum ease of use. User-installable connectivity options and accessories ensure that PC23d will fit your business needs both today and tomorrow. Its low cost and fast operation make the PC23d the smart choice for light-duty labeling applications where users need a reliable, easy-to-use printing solution.
Product Type: Direct Thermal Printer
Technical Information:
Recommended Use: Label Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 8 in/s
Maximum Print Resolution (dpi): 203
Maximum Print Width: 2.20"
Barcode Symbology Supported: Aztec Code
Barcode Symbology Supported: Code 16K
Barcode Symbology Supported: Code 49
Barcode Symbology Supported: Data Matrix
Barcode Symbology Supported: EAN-13
Barcode Symbology Supported: EAN-8
Barcode Symbology Supported: EAN.UCC 128
Barcode Symbology Supported: Grid Matrix
Barcode Symbology Supported: HIBC Code 128
Barcode Symbology Supported: HIBC Code 39
Barcode Symbology Supported: Maxi Code
Barcode Symbology Supported: MSI
Barcode Symbology Supported: PDF-417
Barcode Symbology Supported: Micro PDF-417
Barcode Symbology Supported: Planet Code
Barcode Symbology Supported: Plessey
Barcode Symbology Supported: POSTNET
Barcode Symbology Supported: QR Code
Barcode Symbology Supported: RSS-14
Real Time Clock: Yes
Application/Usage: Desktop
Memory:
Standard Memory: 128 MB
Interfaces/Ports:
USB: Yes
Display & Graphics:
Display Screen: Yes
Screen Size: 2.4"
Display Screen Type: LCD
Media Types & Handling:
Media Type: Tag
Media Type: Linerless
Media Type: Self Adhesive Label
Media Type: Continuous Paper
Media Type: Floodcoat
Media Type: Non-adhesive Tag
Media Sensor: Transmissive Media Sensor
Maximum Roll Diameter: 5"
Maximum Label Width: 2.40"
Maximum Label Length: 68"
Fonts & Emulation:
Language Emulation: IPL
Language Emulation: Fingerprint
Language Emulation: DSim
Language Emulation: ZSim
Language Emulation: XML
Language Emulation: E-Sim
Power Description:
Power Source: Power Adapter
Input Voltage: 24 V DC
Physical Characteristics:
Height: 6.9"
Width: 4.9"
Depth: 8.5"
Weight (Approximate): 3.20 lb
Miscellaneous:
Package Contents:
PC23d Desktop Printer
Software, Driver & Documentation CD
USB Cable
Power Adapter
Power Cord
Handy QuickGuide
Cables Included: USB
Power Adapter Included: Yes
Platform Supported: PC
Certifications & Standards:
CE
FCC Class A
C-UL-US
UL
GS
TUVGS
BSMI
D Mark
cUL
CCC (China)
KCC (South Korea)
C-TICK (Australia/NZ)
UL 60950-1
EN 60950-1
CE marked
NYCE Certified
NOM 19
IEC 60950-1
USA FCC Title 47
Part 15
Subpart A
Class B
Europe EMC Directive (EN55022 Class B + EN55024)
CISPR22
Energy Star: Yes
Environmentally Friendly: Yes
Environmental Certification: RoHS
Warranty:
Limited Warranty: 1 Year
