Home > Point-of-Sale-Computing > Monitors > Elo Touch Solutions > Elo 2203LM Desktop Medical Monitors > E658992

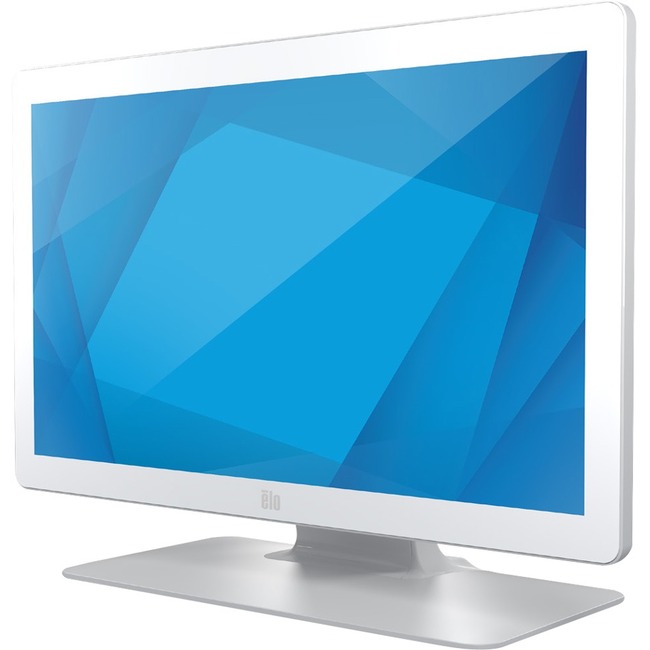

E658992 - Elo 2203LM Desktop Medical Monitors

The Elo 2203LM 22-inch touchscreen monitor for healthcare delivers a professional-grade interactive solution with Elo's industry-leading TouchPro PCAP technology featuring edge-to-edge glass which enables up to 10 simultaneous touches. The clear glass touchscreen provides exceptional image clarity, resolution, and light transmission for vivid images and details. Available in either black or white housings, the 03-Series is designed for healthcare with their compact form factor and clean design combines with IEC60601-1 4th edition and IP54 compliance.

Manufacturer: Elo Touch Solutions

Item Description: 2203LM, PCAP, DICOM 14, ANTIG, 0BEZ, WHT - E658992

Elo 2203LM 21.5" LCD Touchscreen Monitor - 16:9 - 14 ms - 22" Class - TouchPro Projected Capacitive - 10 Point(s) Multi-touch Screen - 1920 x 1080 - Full HD - Thin Film Transistor (TFT) - 16.7 Million Colors - 225 Nit - Speakers - HDMI - USB - VGA - White - RoHS, China RoHS, WEEE, REACH - 3 Year -- Elo 2203LM 22-inch wide LCD Medical Grade Touch Monitor, Full HD, Projected Capacitive 10-touch, DICOM 14, USB and Serial Touch Interface, Anti-glare, Zero-bezel, Stand, VGA and HDMI Video Interface, White, Worldwide - E658992




Image, Data Sheet & Marketing Description may differ from the actual product of part# E658992

     Data Sheet (PDF)


    Mfr Part#: E658992
    Also Known As#: ELO-E658992
    Price:  $976.80
    Availability: 5 units In Stock
    Condition:  New
    Warranty: With Original Manufacturer Warranty

    Qty:

Manufacturer Part# UPC Weight (lb) MSRP
E658992 0843173135458 23 $985.00

DIMENSION UNSPSC HARMONIZATION CODE COUNTRY OF ORIGIN
43211903 8528520000 CN





General Information:

  Manufacturer: Elo Touch Solutions, Inc
  Manufacturer Part Number: E658992
  Manufacturer Website Address: http://www.elotouch.com
  Brand Name: Elo
  Product Series: 03
  Product Model: 2203LM
  Product Name: 2203LM 22" Medical Grade Touchscreen Monitor
  Marketing Information:

DICOM Medical Grade Touchscreen Monitors

The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.

IP-54 Rating

Sealed against dirt, dust and liquids, delivering a reliable, easy-to-sanitize solution.

IEC 60601

IEC 60601 compliant power supply included.

DICOM 14

Ensures accurate and uniform image reproduction for reliable review.

Integrated Touch

TouchPro® PCAP offers a 10-touch tablet-like experience with capability for use with wet or dry gloves.

Built-to-Last

Backed by Elo's 3-year standard warranty with optional EloCare service offerings.

Easy to Clean

Increase safety for healthcare providers and patients with the easy-to-clean touchscreen displays.

DICOM 14 -Designed for Consistent Image Review

Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.

Enhancing Clinical Workflow with Touch

From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.

Purpose-built for Healthcare

The 03-Series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.

Medical Device Ready

With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.

Configurability Made Easy | Flexible Mounting

Every monitor is designed with VESA hole patterns to simplify mounting onto a variety of stands, arms, walls or medical carts.

  Product Type: LCD Touchscreen Monitor

Technical Information:

  Screen Size Class: 22"
  Viewable Screen Size: 21.5"
  Screen Mode: Full HD
  Panel Technology: Thin Film Transistor (TFT)
  Response Time: 14 ms
  Aspect Ratio: 16:9
  Horizontal Viewing Angle: 178°
  Vertical Viewing Angle: 178°
  Mount Type: Arm-mountable
  Mount Type: Wall Mountable
  Mount Type: Cart Mountable
  Mount Type: Shelf Mount
  Mount Type: Pole Mount
  Features: Anti-glare
  Features: On-screen Display (OSD)
  Features: Privacy Filter
  Horizontal Frequency: 30 kHz to 82 kHz
  Vertical Frequency: 50 Hz to 75 Hz

Video:

  Maximum Resolution: 1920 x 1080
  Color Supported: 16.7 Million Colors
  Native Contrast Ratio: 1,000:1
  Brightness: 225 Nit

Audio:

  Speakers: Yes

Touchscreen Information:

  Touchscreen Type: TouchPro Projected Capacitive
  Multi-touch Screen: Yes
  Number of Simultaneous Touchpoints: 10

Interfaces/Ports:

  HDMI: Yes
  USB: Yes
  VGA: Yes
  Number of USB Ports: 4

Power Description:

  Operating Power Consumption: 16.05 W

Physical Characteristics:

  Product Color: White
  VESA Mount Compatible: Yes
  VESA Mount Standard: 100 x 100
  Height with Stand: 15.11"
  Width with Stand: 20.74"
  Depth with Stand: 7.61"
  Weight (Approximate): 10.47 lb
  Weight with Stand (Approximate): 14.88 lb

Miscellaneous:

  Package Contents:
  • 2203LM 22" Medical Grade Touchscreen Monitor
  • Quick Install Guide
  • 3 x Tie Wraps
  • VGA Cable
  • HDMI Cable
  • Touch USB Cable
  • Audio Cable
  • Power Brick (E323104)
  • NA Power Cable
  • EEI Label
  • DICOM Calibration Sheet
  Environmentally Friendly: Yes
  Environmental Certification: RoHS
  Environmental Certification: China RoHS
  Environmental Certification: WEEE
  Environmental Certification: REACH
  Country of Origin: China

Warranty:

  Limited Warranty: 3 Year
