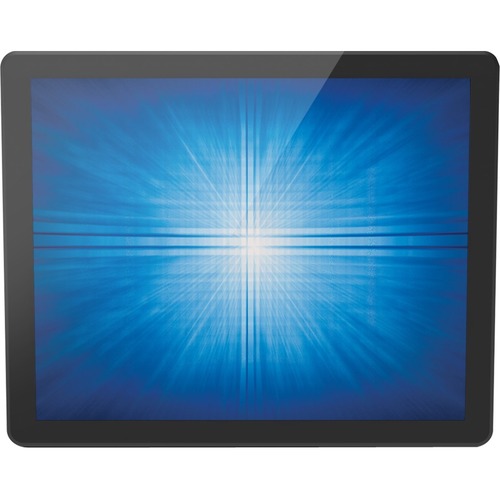

E331595 - Elo 1291L Open Frame Monitors

"The Elo 1291L 12.1-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. The 1291L provides stable, drift-free operation with outstanding image clarify and light transmission for accurate touch responses and vivid images."

Manufacturer: Elo Touch Solutions

Item Description: 1291L 12" OF LCD PCAP WW NoPwrBrk - E331595

1291L, 12-inch LCD WVA (LED Backlight), Open Frame, HDMI, VGA & Display Port video interface, Projected Capacitive 10 Touch Zero-Bezel, USB touch controller interface, Worldwide-version, Clear, No power brick - E331595

Image, Data Sheet & Marketing Description may differ from the actual product of part# E331595

Data Sheet (PDF)

Mfr Part#:

E331595

Also Known As#:

ELO-E331595

Price: $745.79
Availability: In Stock
Condition: New
Warranty: With Original Manufacturer Warranty

Manufacturer Part#	UPC	Weight (lb)	MSRP
E331595	0815335026034	11	~~$776.00~~

DIMENSION	UNSPSC	HARMONIZATION CODE	COUNTRY OF ORIGIN
	43211903	8528520000	CN

General Information:

Manufacturer: Elo Touch Solutions, Inc

Manufacturer Part Number: E331595

Manufacturer Website Address: http://www.elotouch.com

Brand Name: Elo

Product Model: 1291L

Product Name: 1291L 12" Open Frame Touchscreen (Rev B)

Marketing Information: The Elo 1291L 12-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch with proven Elo expertise and reliability built in. The 1291L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.

Easily integrated.

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected, as well as backwards compatibility, helping to minimize enclosure costs.

Touch ready.

Available with a choice of industry-leading single-touch or multi-touch technologies, including IntelliTouch® single-touch surface acoustic wave (SAW) touchscreen technology, and Elo's latest TouchPro™ PCAP two glass solution (2GS) 10-touch with Zero-bezel, offering pristine optical clarity and touch durability.

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

Other features.

Viewing angle of 178° (h) x 178° (v), for sharp colors and graphics in both portrait and landscape modes
10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
Display Port and VGA video interfaces

Product Type: Open-frame LCD Touchscreen Monitor

Technical Information:

Viewable Screen Size: 12.1"

Screen Mode: SVGA

Response Time: 25 ms

Aspect Ratio: 4:3

Mount Type: Flush Mount

Backlight Technology: LED

Video:

Maximum Resolution: 800 x 600

Color Supported: 16.2 Million Colors

Contrast Ratio: 1,500:1
