Home > Point-of-Sale-Computing > Monitors > Elo Touch Solutions > Elo 1991L Open Frame Monitors > E331019

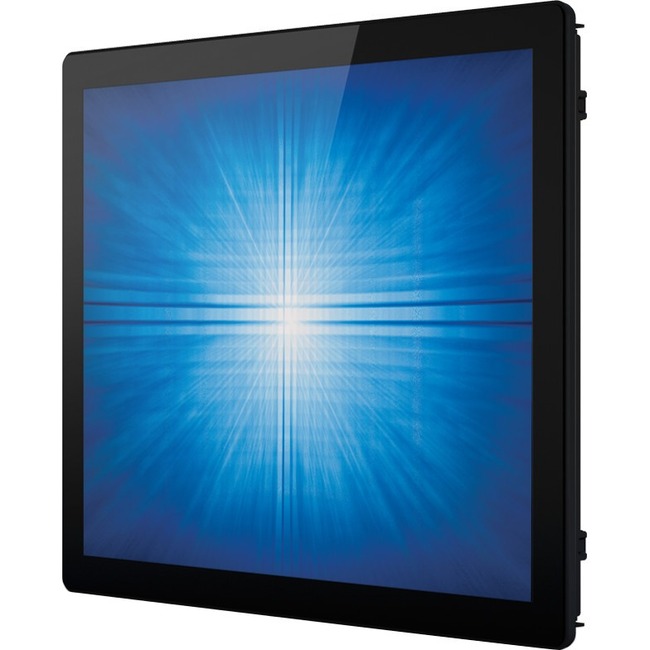

E331019 - Elo 1991L Open Frame Monitors

The Elo 1991L 19-inch open-frame LCD touchscreen features a slim deign and narrow outside deimnsions due to the state-of-the art, energy-saving LED backligh, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1991L provides stable, drift-free operation with outstanding image clarity and light transmission for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, this open-frame touchscreen instantly grabs and hold the users' attention for kiosks, casion and amusement, retail self-service, and industrial automation environments.

Manufacturer: Elo Touch Solutions

Item Description: 1991L 19"LCD OF PCAP WW NoPwrBrk - E331019

Elo 1991L 19-inch LCD WVA (LED Backlight), Open Frame, HDMI, VGA & Display Port video interface, Projected Capacitive 10 Touch Zero-Bezel, USB touch controller interface, Clear, No power brick, Worldwide - E331019




Image, Data Sheet & Marketing Description may differ from the actual product of part# E331019

     Data Sheet (PDF)


    Mfr Part#: E331019
    Also Known As#: ELO-E331019
    Price:  $731.96
    Availability: Call
    Condition:  New
    Warranty: With Original Manufacturer Warranty

    Qty:

Manufacturer Part# UPC Weight (lb) MSRP
E331019 0815335026003 17 $785.00

DIMENSION UNSPSC HARMONIZATION CODE COUNTRY OF ORIGIN
43211903 8528520000 CN





General Information:

  Manufacturer: Elo Touch Solutions, Inc
  Manufacturer Part Number: E331019
  Manufacturer Website Address: http://www.elotouch.com
  Brand Name: Elo
  Product Model: 1991L
  Product Name: 1991L 19" Open Frame Touchscreen (Rev B)
  Marketing Information:

The Elo 1991L 19-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1991L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.

Easily integrated.

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.

Touch ready.

The 1991L is available with a choice of industry-leading touch technologies, in both single touch and multi touch versions. This seamless, zero-bezel 19-inch multi-touch display is available with our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch® five-wire resistive, IntelliTouch® SAW or SecureTouch® anti-vandal SAW.

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

Other features.
  • Viewing angle of 178° (h) x 178° (v), for sharp colors and graphics in both portrait and landscape modes
  • Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
  • 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
  • Display Port and VGA video interfaces
  Product Type: Open-frame LCD Touchscreen Monitor

Technical Information:

  Screen Size Class: 19"
  Viewable Screen Size: 19"
  Screen Mode: SXGA
  Response Time: 14 ms
  Aspect Ratio: 5:4
  Mount Type: Flush Mount
  Mount Type: Rear Mount
  Backlight Technology: LED

Video:

  Maximum Resolution: 1280 x 1024
  Color Supported: 16.7 Million Colors
  Contrast Ratio: 1,000:1
  Brightness: 250 Nit

Touchscreen Information:

  Touchscreen Type: Projected Capacitive
  Multi-touch Screen: Yes

Interfaces/Ports:

  HDMI: Yes
  USB: Yes
  DisplayPort: Yes

Power Description:

  Operating Power Consumption: 17 W

Physical Characteristics:

  Product Color: Black
  VESA Mount Compatible: Yes
  Height: 13.7"
  Width: 16.5"
  Depth: 1.6"
  Weight (Approximate): 10.14 lb

Miscellaneous:

  Package Contents:
  • 1991L 19" Open Frame Touchscreen (Rev B)
  • HDMI cable
  • VGA Cable
  • RJ45 OSD Remote
  • Touch USB Cable
  • User Manual CD
  • Quick Install Guide
  • Flush Mount Brackets w/Screws
  • EEI Label
  • Japan Class-B TM info sheet
  Environmentally Friendly: Yes
  Environmental Certification: RoHS
  Environmental Certification: China RoHS
  Environmental Certification: WEEE

Warranty:

  Limited Warranty: 3 Year
 E331019 Image Gallery:

Elo Touch Solutions [E331019]

Elo 1991L Open Frame Monitors (E331019)

1991L 19"LCD OF PCAP WW NoPwrBrk (E331019)

1991L 19"LCD OF PCAP WW NoPwrBrk {E331019}

E331019
