Home > Point-of-Sale-Computing > Monitors > Elo Touch Solutions > Elo 2294L Open Frame Monitors > E330620

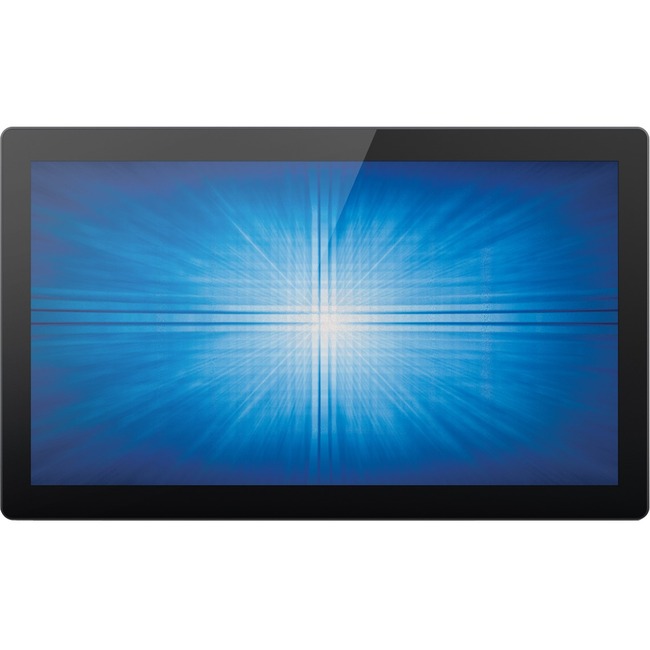

E330620 - Elo 2294L Open Frame Monitors

The Elo 2294L 21.5-inch open-frame LCD touchscreen features a slim deign and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. The 2294L provides stable, dirt-free opration with outstanding image clarity and light transmission for accurate touch reponses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casion and amusement, retail self-service and industrial automation environments.

Manufacturer: Elo Touch Solutions

Item Description: 2294 OpenFr PCAP VGA/HDMI *No PSU* - E330620

Elo 2294L 21.5-inch wide FHD LCD WVA (LED Backlight), Open Frame, HDMI, VGA & Display Port video interface, Projected Capacitive 10 Touch Zero-Bezel, USB touch controller interface, Clear, No power brick, Worldwide - E330620




Image, Data Sheet & Marketing Description may differ from the actual product of part# E330620

     Data Sheet (PDF)


    Mfr Part#: E330620
    Also Known As#: ELO-E330620
    Price:  $710.05
    Availability: 125 units In Stock
    Condition:  New
    Warranty: With Original Manufacturer Warranty

    Qty:

Manufacturer Part# UPC Weight (lb) MSRP
E330620 0074050666844 18 $787.00

DIMENSION UNSPSC HARMONIZATION CODE COUNTRY OF ORIGIN
16.7 x 7.4 x 24.3 43211903 8528520000 CN





General Information:

  Manufacturer: Elo Touch Solutions, Inc
  Manufacturer Part Number: E330620
  Manufacturer Website Address: http://www.elotouch.com
  Brand Name: Elo
  Product Model: 2294L
  Product Name: 2294L 21.5" Open Frame Touchscreen (Rev B)
  Marketing Information: The Elo 2294L 21.5-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 2294L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.

Easily integrated.

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.

Touch ready.

Available with a choice of industry-leading touch technologies, in single-, dual- or multi-touch technology, including IntelliTouch® single- and dual-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves.

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

Other features.
  • High definition LCD display offers ultimate HD interactivity, clarity and resolution
  • 10-touch TouchPro projected capacitive with two-touch Thru-glass capabilities that passes UL-60950 & IK-07 Impact testing
  • Viewing angle of 178° (h) x 178° (v), for sharp colors and graphics in both portrait and landscape modes
  • Display Port and VGA video interfaces
  Packaged Quantity: 1
  Product Type: Open-frame LCD Touchscreen Monitor

Technical Information:

  Screen Size Class: 22"
  Viewable Screen Size: 21.5"
  Screen Mode: Full HD
  Panel Technology: Thin Film Transistor (TFT)
  Response Time: 14 ms
  Aspect Ratio: 16:9
  Horizontal Viewing Angle: 178°
  Vertical Viewing Angle: 178°
  Mount Type: Flush Mount
  Backlight Technology: LED
  Features: On-screen Display (OSD)
  Curved Screen: No

Video:

  Maximum Resolution: 1920 x 1080
  Color Supported: 16.7 Million Colors
  Contrast Ratio: 1,000:1
  Brightness: 250 Nit

Touchscreen Information:

  Touchscreen Type: TouchPro Projected Capacitive
  Multi-touch Screen: Yes
  Number of Simultaneous Touchpoints: 10

Interfaces/Ports:

  HDMI: Yes
  USB: Yes
  VGA: Yes
  DisplayPort: Yes

Power Description:

  Operating Power Consumption: 25 W

Physical Characteristics:

  Product Color: Black
  VESA Mount Compatible: Yes
  VESA Mount Standard: 100 x 100
  Height: 12.2"
  Width: 20.3"
  Depth: 1.5"
  Weight (Approximate): 11.24 lb

Miscellaneous:

  Package Contents:
  • 2294L 21.5" Open Frame Touchscreen (Rev B)
  • HDMI cable
  • VGA Cable
  • RJ45 OSD Remote
  • Touch USB Cable
  • User Manual CD
  • Quick Install Guide
  • Flush Mount Brackets w/Screws
  • EEI Label
  • Japan Class-B TM info sheet
  Environmentally Friendly: Yes
  Environmental Certification: RoHS
  Environmental Certification: China RoHS
  Environmental Certification: WEEE

Warranty:

  Limited Warranty: 3 Year
