E328497 - Elo 1990L Open Frame Monitors

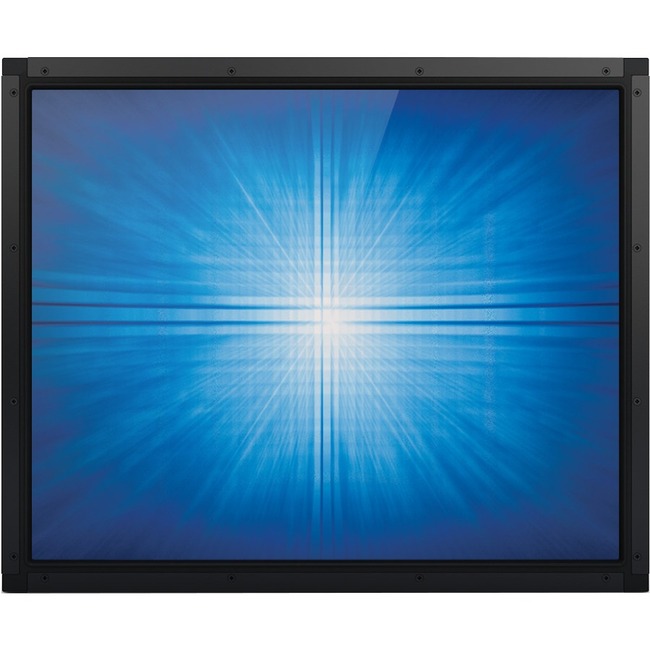

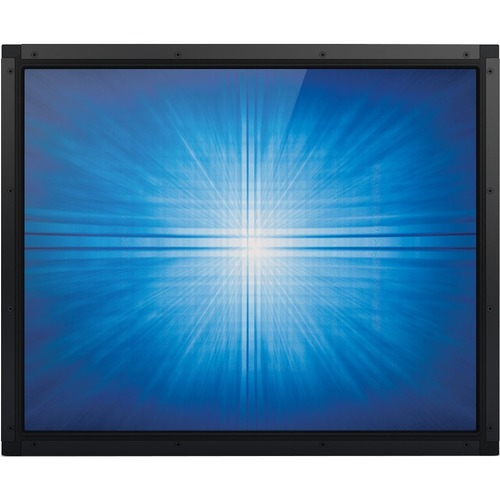

The Elo 1990L 19-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. The 1990L provides stable, drift-free operation with outstanding image clarify and light transmission for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the open-frame touchscreen is perfect for kiosks, casion and amusement, retail self-service, and industrial automation environments.

Manufacturer: Elo Touch Solutions

Item Description: 1990L,19"LCD,OF,Intellitouch,No pwr brck - E328497

Elo 1990L 19-inch LCD (LED Backlight), Open Frame, HDMI, VGA & Display Port video interface, IntelliTouch, USB & RS232 touch controller interface, Clear, No power brick, Worldwide - E328497

Image, Data Sheet & Marketing Description may differ from the actual product of part# E328497

Data Sheet (PDF)

Mfr Part#:

E328497

Also Known As#:

ELO-E328497

Price: $598.47
Availability: In Stock
Condition: New
Warranty: With Original Manufacturer Warranty

Manufacturer Part#	UPC	Weight (lb)	MSRP
E328497	0086242018034	17	~~$614.00~~

DIMENSION	UNSPSC	HARMONIZATION CODE	COUNTRY OF ORIGIN
20.6 x 17.6 x 7.1	43211903	8528520000	US

General Information:

Manufacturer: Elo Touch Solutions, Inc

Manufacturer Part Number: E328497

Manufacturer Website Address: http://www.elotouch.com

Brand Name: Elo

Product Model: 1990L

Product Name: 1990L 19" Open Frame Touchscreen (Rev B)

Marketing Information: The Elo 1990L 19-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1990L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the open-frame touchscreen is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.

Easily integrated.

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.

Touch ready.

Available with a choice of industry-leading touch technologies, in single- or multi-touch technology, including IntelliTouch® single-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves.

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

Other features.

Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
LED backlighting allows for state-of-the-art slim design while reducing power consumption
10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
Display Port and VGA video interfaces

Packaged Quantity: 1

Product Type: Open-frame LCD Touchscreen Monitor

Technical Information:

Screen Size Class: 19"

Viewable Screen Size: 19"

Screen Mode: SXGA

Panel Technology: Thin Film Transistor (TFT)

Response Time: 5 ms

Aspect Ratio: 5:4

Horizontal Viewing Angle: 170°

Vertical Viewing Angle: 160°

Mount Type: Front Mount
