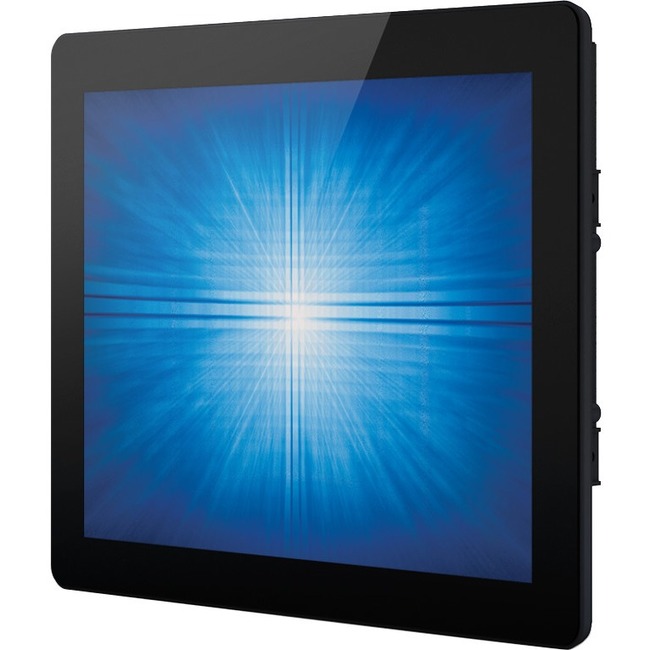

E326738 - Elo 1590L Open Frame Monitors
"The Elo 1590L 15-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. The 1590L provides stable, drift-free operation with outstanding image clarify and light transmission for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the open-frame touchscreen is perfect for kiosks, casino and amustement, retail self-service and industrial automation environments"
Manufacturer: Elo Touch Solutions
Item Description: 1590L 15" OF LCD Intellitouch NoPwrBrk - E326738
Elo 1590L 15-inch LCD (LED Backlight), Open Frame, HDMI, VGA & Display Port video interface, IntelliTouch, USB & RS232 touch controller interface, Anti-Glare, No power brick, Worldwide - E326738
Image, Data Sheet & Marketing Description may differ from the actual product of part# E326738
Data Sheet (PDF)
|
|
|
|
Manufacturer Part#
|
UPC
|
Weight (lb)
|
MSRP
|
|
E326738
|
0037321584834
|
9
|
$600.00
|
|
DIMENSION
|
UNSPSC
|
HARMONIZATION CODE
|
COUNTRY OF ORIGIN
|
|
16.9 x 14.7 x 6.7
|
43211903
|
8528520000
|
CN
|
|
General Information:
|
|
Manufacturer: Elo Touch Solutions, Inc
|
|
Manufacturer Part Number: E326738
|
|
Manufacturer Website Address: http://www.elotouch.com
|
|
Product Name: 1590L 15" Open Frame Touchscreen (Rev B)
|
Marketing Information: The Elo 1590L 15-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch, with proven Elo expertise and reliability built in. The 1590L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the 15-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Easily integrated. The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.
Touch ready.
The 1590L is available with a choice of industry-leading single-touch or multi-touch technologies. The seamless zero-bezel 15-inch multi-touch display is available with our latest TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch® five-wire resistive, IntelliTouch® SAW or SecureTouch® anti-vandal SAW.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features. - Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
- Display Port and VGA video interfaces
- 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
|
|
Product Type: Open-frame LCD Touchscreen Monitor
|
Technical Information:
|
|
Screen Size Class: 15"
|
|
Viewable Screen Size: 15"
|
|
Panel Technology: Thin Film Transistor (TFT)
|
|
Horizontal Viewing Angle: 160°
|
|
Vertical Viewing Angle: 150°
|
|
Mount Type: Rack-mountable
|
|
Backlight Technology: LED
|
|
Features: On-screen Display (OSD)
|
Video:
|
|
Maximum Resolution: 1024 x 768
|
|
Color Supported: 16.2 Million Colors
|
Touchscreen Information:
|
|
Touchscreen Type: IntelliTouch Surface Wave
|
Interfaces/Ports:
|
|
HDMI: Yes
|
Power Description:
|
|
Operating Power Consumption: 14 W
|
Physical Characteristics:
|
|
Product Color: Black
|
|
VESA Mount Compatible: Yes
|
|
VESA Mount Standard: 100 x 100
|
|
Weight (Approximate): 6.40 lb
|
Miscellaneous:
|
Package Contents: - 1590L 15" Open Frame Touchscreen (Rev B)
- HDMI cable
- VGA Cable
- RJ45 OSD Remote
- Touch USB Cable
- User Manual CD
- Quick Install Guide
- "L" (Side Mount) Brackets and w/Screws
- EEI Label
- Japan Class-B TM info sheet
|
|
Environmentally Friendly: Yes
|
|
Environmental Certification: RoHS
|
|
Environmental Certification: China RoHS
|
|
Environmental Certification: WEEE
|
Warranty:
|
|
Limited Warranty: 3 Year
|
