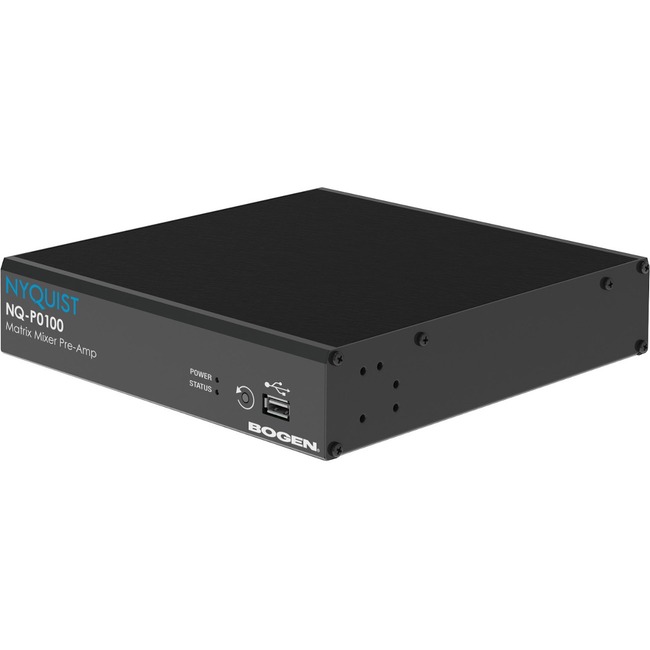

Bogen's Nyquist networked 4-Channel Matrix Mixer Pre-Amplifier (MMPA) offers cost-effective performance for permanent installations and commercial sound and is designed to meet the rigorous requirements of today's sophisticated sound systems. Developed with the commercial sound contractor in mind, the MMPA provides unparalleled flexibility and versatility without the need for add-on modules. It includes state-of-the-art, built-in DSP for extensive and comprehensive signal processing-allowing users to skillfully manage and mix multiple audio input channels. The resulting audio signal mix can be directed to the MMPA's line out or streamed over the Nyquist network, where it can be used for audio distribution to one or more zones. The MMPA fits a wide range of commercial audio applications that require multi-zone paging and/or background music distribution at businesses, restaurants, retail stores, industrial facilities, and many other venues.
4- MIC/Line Inputs
CH1-CH4 configurable balanced/unbalanced inputs via 3 XLR and 4 screw-terminal connections
Channel four (4) can be configured to support Push-to-Talk microphone applications
Mic inputs can be configured to supply Phantom Power when needed
CH1 can alternately be configured as an AES3 digital input
Web-based DSP control
16-band Graphic Equalizer
Signal present and clip monitor
Adjustable High Pass, Low Pass, and Bandpass filters
Noise Gate
Compressor/Limiter
7-band parametric equalizer
Mixed signals can be routed to Line Out or over the Nyquist network
