Home > Audio > Accessories > Bogen > Bogen Music Sources > DRZ120

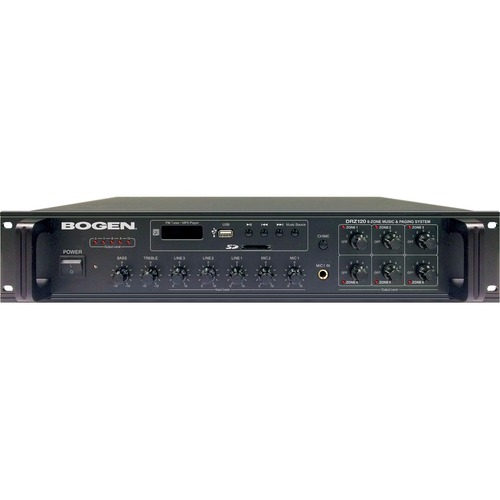

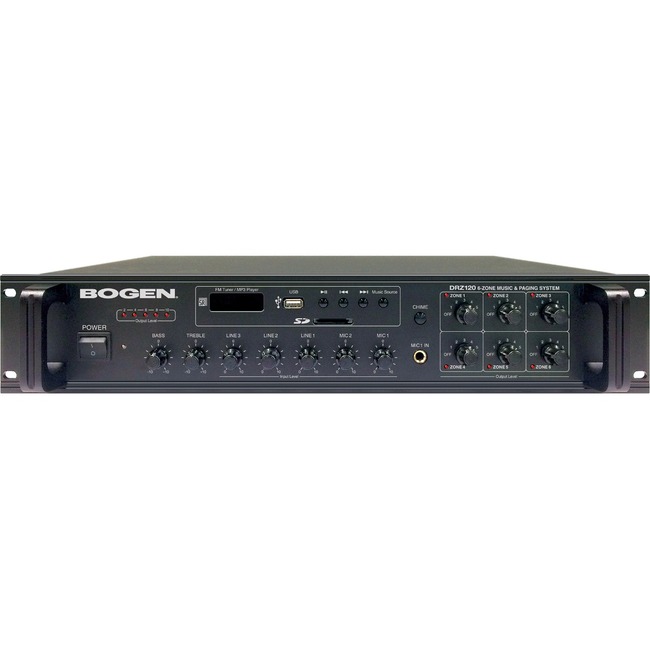

DRZ120 - Bogen Music Sources

Manufacturer: Bogen

Item Description: RECEIVER,AM,FM,MP,120W - DRZ120

6-zone music and paging system with FM Tuner, MP3 Player, Mic and Line inputs, 120-watt audio output - DRZ120


Image, Data Sheet & Marketing Description may differ from the actual product of part# DRZ120

    Mfr Part#: DRZ120
    Price:  $541.55
    Availability: Dropship / Preorder
    Condition:  New
    Warranty: With Original Manufacturer Warranty


Manufacturer Part# UPC Weight (lb) MSRP
DRZ120 0765368482775 28 $1,043.81

22.1 x 9.1 x 18.3 8518298000 CN

General Information:

  Manufacturer: Bogen Communications International, Inc
  Manufacturer Part Number: DRZ120
  Manufacturer Website Address:
  Brand Name: Bogen
  Product Model: DRZ120
  Product Name: DRZ120 Amplifier
  Marketing Information:

The Bogen DRZ120 is a unique, self-contained 6-zone music and paging system for small- to medium-sized applications. It combines a digital FM tuner / MP3 player with seven (7) MIC & LINE inputs. It has a 120-watt amplifier capable of driving 4-16 ohm or 70-volt speaker systems.

The DRZ120 permits connection of up to six individual paging and music zones. The DRZ120 also features Bass and Treble controls and a 5-segment LED output signal level indicator. The built-in FM tuner uses a PLL synthesizer to provide accurate frequency selection. MP3 audio can be played from files (.mp3 & .wav) accessed via the USB or SD card slots on the front panel.

The MIC1 Input can be set for VOX-activated override/muting of the other audio inputs. Additionally, there is a push-button activated Chime feature that produces a short, melodic series of four ascending bell-like alert tones which are played across all outputs.

  Product Type: Amplifier

Technical Information:

  Minimum Frequency Response: 80 Hz
  Maximum Frequency Response: 16 kHz
  Impedance: 8 Ohm
  Multizone: Yes


  RMS Output Power: 120 W


  Frequency Band: FM


  USB: Yes
  Number of Analog Audio Inputs: 6

Power Description:

  Operating Power Consumption: 250 W

Physical Characteristics:

  Product Color: Black
  Height: 3.5"
  Width: 19.1"
  Depth: 13.8"
  Weight (Approximate): 25.20 lb


  Package Contents:
  • DRZ120 Amplifier
  • 21-Button Remote Control
  • 5 ft. Male-to-Male RCA Phono Cables
  • 5 ft. 75-Ohm Wire FM Antenna
  • 2 x 3-Terminal Pluggable Euro-Block Connectors
  • 4 x Rubber Feet/Stand-offs with mounting screws
 DRZ120 Image Gallery:

Bogen [DRZ120]

Bogen Music Sources (DRZ120)
