XD5-40DEBK - BIXOLON XD5-40DEBK BLACK COLOR BUILT
Manufacturer: BIXOLON
Item Description: BIXOLON, XD5-40DEBK, BLACK COLOR, BUILT IN USB, USB HOST, ETHERNET, BLUETOOTH, SERIAL, 7IPS PRINTING SPEED, DIRECT THERMAL, 203 DPI, POWER SUPPLY / US POWER CORD, WARRANTY: LIMITED 2 YEARS - TPH 1 YEA - XD5-40DEBK
Image, Data Sheet & Marketing Description may differ from the actual product of part# XD5-40DEBK
|
|
|
Manufacturer Part#
|
UPC
|
Weight (lb)
|
MSRP
|
XD5-40DEBK
|
8809521198546
|
8
|
$654.00
|
DIMENSION
|
UNSPSC
|
HARMONIZATION CODE
|
COUNTRY OF ORIGIN
|
|
|
|
KR
|
|
General Information:
|
Manufacturer: Bixolon America, Inc
|
Manufacturer Part Number: XD5-40DEBK
|
Manufacturer Website Address: http://www.bixolon.com
|
Product Name: XD5-40d Direct Thermal Printer
|
Marketing Information: Robust and highly featured The XD5-40d is a 4-inch (118mm) mid-level Direct Thermal Desktop Barcode and Label Printer featuring a compact, clamshell design and comprehensive software features which is ideal for labelling applications within the Manufacturing, Transport and Logistics, Retail and Healthcare industries. Available as XD5-40d (203dpi) and XD5-43d (300dpi) resolution options, the XD5-40d's standard model (XD5-40d) offers quick data processing and print speeds of up to 7 ips (178mm/sec), with enhanced memory space of up to 256MB SDRAM and 256MB Flash. Accompanied with a field installable Peeler, Auto Cutter and an external paper supply, the label printer offers an optional visual LCD display, adjustable paper guide plus holder and space for a media roll diameter of up to 127mm. Complemented by its Smart Media Detection™ for the automatic media detection of Gap, Black Mark, Continuous or Notch media formats, all back with a 2-year warranty as standard. Supporting multiple connectivity options, the XD5-40d comes with dual USB2.0 and USB Host as standard, plus optional, Dual-WLAN, Dual-Bluetooth, Serial or Ethernet. With the USB host port allowing the duplication of existing printer settings and data to another estate printers through its Twin Function™. The XD5-40d is compatible with market leading programming languages including SLCS™, BPL-Z™ and BPL-E™. The printer is accompanied with comprehensive firmware and software options, including BIXOLON's XPM™ web-based printer profile management and Simple Network Management Protocol (MIB file). Alongside compatibility with label design software including BIXOLON's Label Artist-II™ and BarTender®.
|
Product Type: Direct Thermal Printer
|
Technical Information:
|
Recommended Use: Label Print
|
Print Color Capability: Monochrome
|
Maximum Mono Print Speed: 7.01 in/s
|
Maximum Print Resolution (dpi): 203
|
Maximum Print Length: 39.37"
|
Barcode Symbology Supported: 1D
|
Barcode Symbology Supported: Code 11
|
Barcode Symbology Supported: Code 39
|
Barcode Symbology Supported: Code 93
|
Barcode Symbology Supported: Code 128
|
Barcode Symbology Supported: EAN-13
|
Barcode Symbology Supported: EAN-8
|
Barcode Symbology Supported: Industrial 2 of 5
|
Barcode Symbology Supported: Interleaved 2 of 5
|
Barcode Symbology Supported: LOGMARS
|
Barcode Symbology Supported: MSI
|
Barcode Symbology Supported: Plessey
|
Barcode Symbology Supported: POSTNET
|
Barcode Symbology Supported: GS1 DataBar (RSS-14)
|
Barcode Symbology Supported: Standard 2 of 5
|
Barcode Symbology Supported: UPC-EAN Extensions
|
Barcode Symbology Supported: UPC-A
|
Barcode Symbology Supported: UPC-E
|
Barcode Symbology Supported: IMB
|
Barcode Symbology Supported: 2D
|
Barcode Symbology Supported: AZTEC
|
Barcode Symbology Supported: Codablock
|
Barcode Symbology Supported: Code 49
|
Barcode Symbology Supported: Data Matrix
|
Barcode Symbology Supported: Maxi Code
|
Barcode Symbology Supported: Micro PDF-417
|
Barcode Symbology Supported: PDF-417
|
Barcode Symbology Supported: QR Code
|
Barcode Symbology Supported: TLC 39
|
Barcode Symbology Supported: Codabar
|
Connectivity Technology: Wired
|
Application/Usage: Desktop
|
Application/Usage: Manufacturing
|
Application/Usage: Retail
|
Application/Usage: Transportation & Logistic
|
Application/Usage: Healthcare
|
Memory:
|
Standard Memory: 64 MB
|
Interfaces/Ports:
|
USB Host: Yes
|
Network & Communication:
|
Ethernet: Yes
|
Ethernet Technology: Fast Ethernet
|
Media Types & Handling:
|
Media Type: Gap
|
Media Type: Continuous Label
|
Media Sensor: Transmissive Media Sensor
|
Media Sensor: Reflective Media Sensor
|
Media Sensor: Head Open Sensor
|
Media Thickness: 7.87 mil
|
Maximum Roll Diameter: 5"
|
Maximum Label Width: 4.65"
|
Fonts & Emulation:
|
Language Emulation: EPL
|
Language Emulation: ZPL II
|
Language Emulation: BPL-Z
|
Language Emulation: BPL-E
|
Power Description:
|
Power Source: Power Adapter
|
Environmental Conditions:
|
Operating Temperature: 32°F (0°C) - 104°F (40°C)
|
Operating Relative Humidity: 10% - 80%
|
Storage Temperature: -4°F (-20°C) - 140°F (60°C)
|
Storage Relative Humidity: 10% - 90%
|
Physical Characteristics:
|
Product Color: Black
|
Weight (Approximate): 4.17 lb
|
Miscellaneous:
|
Power Cable Localization: US
|
Optional Connectivity: Wireless LAN
|
Platform Supported: SPARC
|
Platform Supported: Android
|

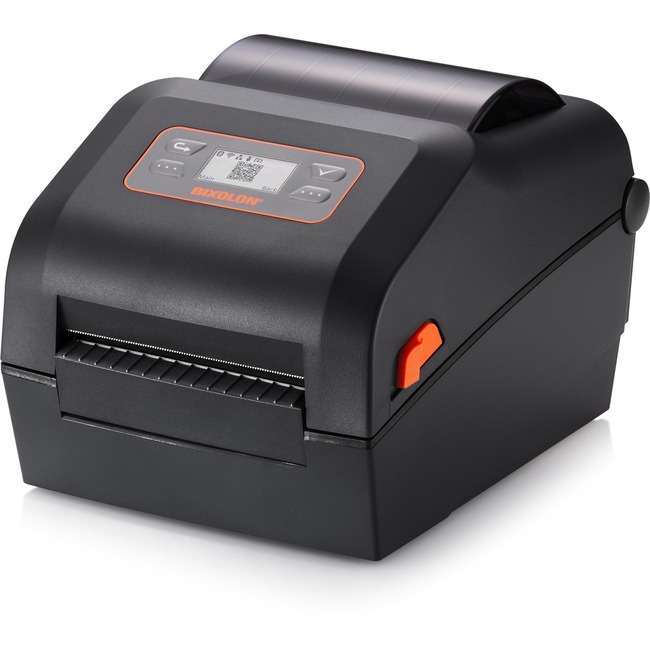

XD5-40DEBK Image Gallery:
BIXOLON [XD5-40DEBK]
BIXOLON XD5-40DEBK BLACK COLOR BUILT (XD5-40DEBK)
BIXOLON, XD5-40DEBK, BLACK COLOR, BUILT IN USB, USB HOST, ETHERNET, BLUETOOTH, SERIAL, 7IPS PRINTING SPEED, DIRECT THERMAL, 203 DPI, POWER SUPPLY / US POWER CORD, WARRANTY: LIMITED 2 YEARS - TPH 1 YEA (XD5-40DEBK)
BIXOLON, XD5-40DEBK, BLACK COLOR, BUILT IN USB, USB HOST, ETHERNET, BLUETOOTH, SERIAL, 7IPS PRINTING SPEED, DIRECT THERMAL, 203 DPI, POWER SUPPLY / US POWER CORD, WARRANTY: LIMITED 2 YEARS - TPH 1 YEA {XD5-40DEBK}
XD5-40DEBK
|
|
|
