ACM8CB - Altronix Power Distribution n Auxiliary Modules
Altronix Power Distribution & Auxiliary Module
Manufacturer: Altronix
Item Description: ACCESS POWER CONTROLLER, 8 PTCPROTECTED - ACM8CB
Access Power Controller, 8 PTC Class 2 Relay Outputs, FAI, Board - ACM8CB
Image, Data Sheet & Marketing Description may differ from the actual product of part# ACM8CB
Data Sheet (PDF)
|
|
|
|
Manufacturer Part#
|
UPC
|
Weight (lb)
|
MSRP
|
|
ACM8CB
|
0782239933259
|
2
|
$127.29
|
|
DIMENSION
|
UNSPSC
|
HARMONIZATION CODE
|
COUNTRY OF ORIGIN
|
|
0.7 x 0.11 x 7.7
|
|
8536410020
|
US
|
|
General Information:
|
|
Manufacturer: Altronix Corporation
|
|
Manufacturer Part Number: ACM8CB
|
|
Manufacturer Website Address: http://www.altronix.com
|
|
Product Name: ACM8CB Access Power Controller Module
|
Marketing Information: Altronix ACM8CB converts one (1) 12 to 24 volt AC or DC input into eight (8) independently controlled Class 2 rated PTC protected power-limited auto-resettable outputs rated at 2.5A each. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. ACM8CB will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes.
This unit is designed to be powered by one common power source which will provide power for both the board operation and locking devices, or two (2) totally independent power sources, one (1) providing power for board operation and the other for lock / accessory power. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs.
|
|
Product Type: Power Module
|
Power Description:
|
|
Input Voltage: 12 V AC
|
Physical Characteristics:
|
|
Height: 1.3"
|
|
Weight (Approximate): 11.20 oz
|
Miscellaneous:
|
|
Environmentally Friendly: Yes
|
|
Environmental Certification: RoHS
|
|
Country of Origin: United States
|
Warranty:
|
|
Limited Warranty: Lifetime
|

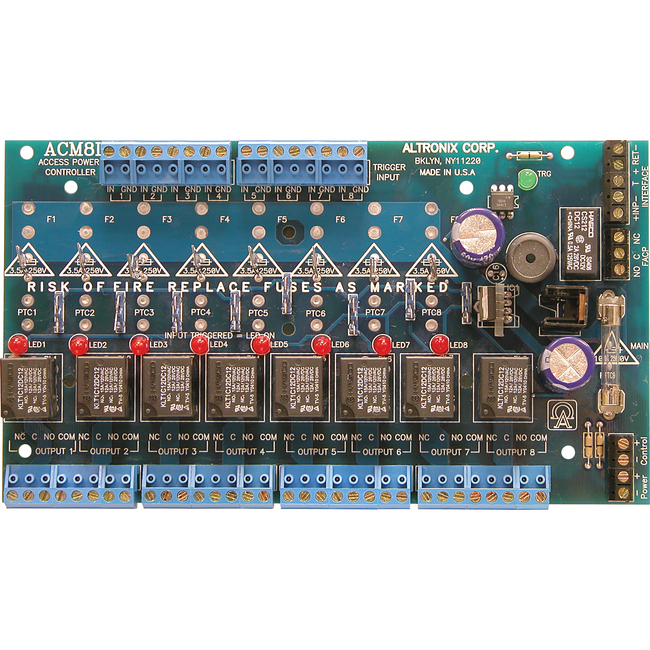

ACM8CB Image Gallery:
