ACM8 - Altronix Power Distribution n Auxiliary Modules
Altronix Power Distribution & Auxiliary Module
Manufacturer: Altronix
Item Description: UL RECOGNIZED ACCESS PWR.CNTRL8 FUSE PRO - ACM8

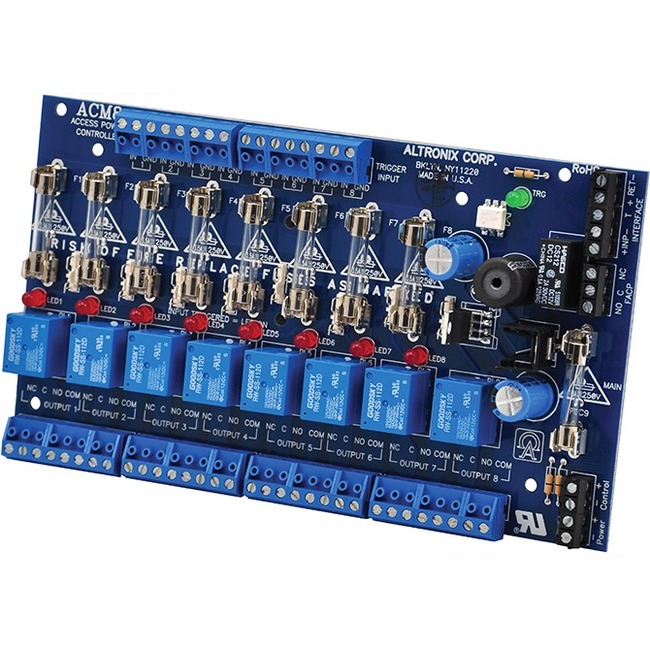

Access Power Controller, 8 Fused Relay Outputs, FAI, Board - ACM8
Image, Data Sheet & Marketing Description may differ from the actual product of part# ACM8
Data Sheet (PDF)
|
|
|
|
Manufacturer Part#
|
UPC
|
Weight (lb)
|
MSRP
|
|
ACM8
|
0115970990944
|
2
|
$127.29
|
|
DIMENSION
|
UNSPSC
|
HARMONIZATION CODE
|
COUNTRY OF ORIGIN
|
|
7.7 x 11 x 4.2
|
|
8536410020
|
US
|
|
General Information:
|
|
Manufacturer: Altronix Corporation
|
|
Manufacturer Part Number: ACM8
|
|
Manufacturer Website Address: http://www.altronix.com
|
|
Product Name: ACM8 Power Controller
|
|
Marketing Information: ACM8 unit converts one 12 to 24 volt AC or DC input into eight independently controlled fuse protected outputs. These power outputs can be converted to dry form "C" contacts. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. The unit will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The unit is designed to be powered by one common power source which will provide power for both the board operation and locking devices, or two totally independent power sources, one providing power for board operation and the other for lock / accessory power. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight outputs.
|
|
Product Type: Power Controller
|
Physical Characteristics:
|
|
Form Factor: Wall Mountable
|
|
Weight (Approximate): 11.20 oz
|
Miscellaneous:
|
|
Application/Usage: Card Reader
|
|
Application/Usage: Keypad
|
|
Application/Usage: Electric Strike
|
|
Compatibility: Access Control Devices: - Mag Locks
- Electric Strikes
- Magnetic Door Holders
|
|
Environmentally Friendly: Yes
|
|
Environmental Certification: RoHS
|
|
Country of Origin: United States
|
Warranty:
|
|
Limited Warranty: Lifetime
|
