Product Name: ZQ610 Plus-HC Direct Thermal Printer
Marketing Information: Easily reduce the risk of errors in specimen collection with premium mobile printing at the point of care
Want to improve specimen labeling accuracy, staff productivity and patient safety? With the ZQ600/ZQ600 Plus Healthcare Series, you can. The ZQ600/ZQ600 Plus takes Zebra's popular QLn platform and makes it even better-adding advanced technology and innovative design that drive productivity, ease-of-use and manageability to a new level. Designed specifically for healthcare, these compact printers are built to withstand constant disinfecting. The color display takes all the guesswork out of printer status. Advanced battery technology powers every minute of the longest shift. The ZQ600/ZQ600 Plus offers the fastest, most dependable wireless connections inside the four walls and your IT department will find the ZQ600/ZQ600 Plus easier to integrate, manage and secure. The ZQ600 Plus Series delivers the same features and specifications as the ZQ600 Series, using redesigned electronics for long-term product continuity and availability. The ZQ600 Plus printers require new, different firmware and drivers.
The Latest Wireless Connections for Fast and Secure Printing
The ZQ600/ZQ600 Plus Series offers the fastest, most dependable wireless connections inside the four walls. With support for 802.11ac Wi-Fi and its latest security protocols, plus Bluetooth® Classic and Low Energy (BLE), healthcare staff can count on blazing fast and secure connections.
Industry-Standard 802.11r Fast Roaming for Seamless Access
Support for 802.11r fast roaming technology delivers the dependable wireless connection your on-the-move staff needs.
Instant Wake-Up Over Wi-Fi
Every second counts in the mission-critical world of healthcare- that's why the ZQ600/ZQ600 Plus offers instant wake on Wi-Fi. This intelligent printer enters sleep mode when it is idle, and automatically wakes up the moment a user sends a print job, delivering instant availability-along with maximum battery cycle time. And the ZQ600/ZQ600 Plus' instant wake-up works over both Wi-Fi and Bluetooth.
Large Color Display Makes Configuration and Operation a Snap
It's easy to set up and maintain the ZQ600/ZQ600 Plus Series with its large display, user-friendly interface and easily customized menu. The display changes color when the printer is paused or in an error state, such as out of media or latch open, so users instantly know what the printer needs to stay up and running. And since the ZQ600/ZQ600 Plus Series is based on Zebra's Link-OS menu system, you'll get a common UI and user experience across other Zebra Link-OS mobile, desktop and industrial printers to lower the learning curve.
Business Tough-Built for All-Day Every Day Use
While the ZQ600/ZQ600 Plus is lightweight and comfortable to wear all shift long, it is loaded with features that give it long-lasting durability, including over-molding, a tempered-glass display and seamless one-piece design. The high-grade resin is one of the toughest plastics available for greater impact resistance. And multiple mechanical design improvements further increase printer robustness and uptime.
Product Type: Direct Thermal Printer
Technical Information:
Recommended Use: Label/Receipt Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 4.53 in/s
Maximum Print Resolution (dpi): 203
Maximum Print Length: 32.01"
Maximum Print Width: 1.89"
Barcode Symbology Supported: Code 39
Barcode Symbology Supported: Code 93
Barcode Symbology Supported: UCC/EAN 128
Barcode Symbology Supported: Code 128
Barcode Symbology Supported: Codabar (NW-7)
Barcode Symbology Supported: Interleaved 2 of 5
Barcode Symbology Supported: UPC-A
Barcode Symbology Supported: UPC E with 2 and 5 add on
Barcode Symbology Supported: EAN-8
Barcode Symbology Supported: EAN-13
Barcode Symbology Supported: PDF417
Barcode Symbology Supported: Micro PDF-417
Barcode Symbology Supported: Maxi Code
Barcode Symbology Supported: QR Code
Barcode Symbology Supported: GS1 DataBar
Barcode Symbology Supported: AZTEC
Barcode Symbology Supported: MSI PLESSEY
Barcode Symbology Supported: FIM
Barcode Symbology Supported: POSTNET
Barcode Symbology Supported: Data Matrix
Barcode Symbology Supported: TLC 39
Barcode Symbology Supported: 2 and 5 Digits Add-on
Character Sets: Universal Font Scaling Technology (UFST)
Character Sets: Agfa Monotype
Application/Usage: Desktop
Application/Usage: Industrial
Application/Usage: Mobile
Features: Belt Clip
Features: Shoulder Strap
Features: Dust Resistant
Features: Water Resistant
Mobile Device Printing: Yes
Memory:
Standard Memory: 256 MB
Network & Communication:
Bluetooth: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11ac
Near Field Communication (NFC): Yes
Display & Graphics:
Display Screen: Yes
Media Types & Handling:
Media Type: Gap
Media Type: Black Mark
Media Type: Receipt
Media Type: Label
Media Type: Die-cut Label
Media Type: Tag
Media Type: Linered Media
Media Type: Black Bar
Media Sensor: Black Mark Sensor
Media Sensor: Gap Sensor
Media Thickness: 6.50 mil
Maximum Roll Diameter: 2.20"
Maximum Label Width: 2.18"
Maximum Label Length: 32"
Fonts & Emulation:
Language Emulation: CPCL
Language Emulation: EPL
Language Emulation: ZPL
Language Emulation: ZBI 2.0
Software:
Operating System Supported: Link-OS
Reliability:
Ingress Protection (IP) Rating: IP54
Power Description:
Power Source: Battery
Battery Information:
Battery Capacity: 3250 mAh
Environmental Conditions:
Operating Temperature: 32°F (0°C) - 122°F (50°C)
Operating Relative Humidity: 10% - 90%
Storage Temperature: -13°F (-25°C) - 149°F (65°C)
Storage Relative Humidity: 10% - 90%
Physical Characteristics:
Height: 2.9"
Width: 3.6"
Depth: 6.7"
Weight (Approximate): 1.32 lb
Miscellaneous:
Optional Connectivity: Serial (RS-232)
Optional Connectivity: USB
Optional Connectivity: Ethernet
Platform Supported: iOS
Platform Supported: Android
Platform Supported: PC
Certifications & Standards:
Emissions:
FCC Part 15
Subpart B
EN55022 Class-B
EN60950
EN55024
VCCI class B
Susceptibility:
EN55024
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
Safety:
CE
TUV
CSA
Warranty:
Limited Warranty: 1 Year

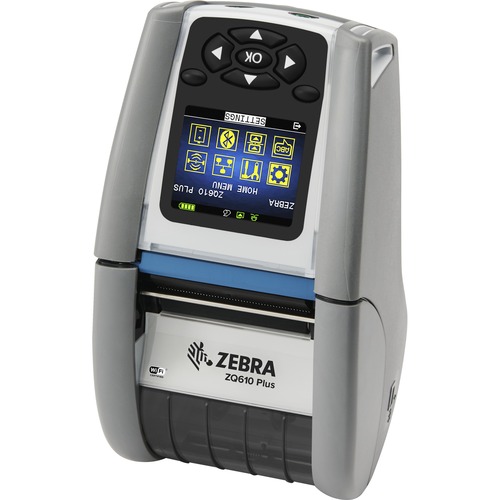

ZQ61-HUWA004-00 Image Gallery:
