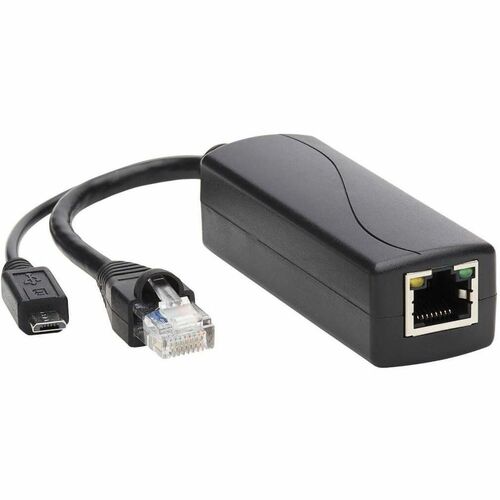

Product Name: NPOE-SPL-G-5VMU PoE to USB Micro-B and RJ45 Active Splitter
Marketing Information:
Features
Split Your PoE Signal into Separate Power and Ethernet Connections for Edge Networks Connect the NPOE-SPL-G-5VMU PoE (Power over Ethernet) splitter to your edge network up to 328 feet (100 meters) from a PoE switch or 48V injector. The splitter separates the power and data signals, delivering 5V 1A (5W) of power to the USB Micro-B plug and 10/100/1000 Mbps to the RJ45 data plug. This allows you more flexibility in placing devices in areas where an AC outlet is unavailable and too expensive or impractical to install.
Supports Power over Ethernet to Save You Money and Give You More Installation Choices This PoE splitter supplies the power (through its USB connector) to operate non-PoE equipment, such as security cameras, VoIP telephones and wireless access points (WAP). This saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install devices in areas far away from AC outlets, such as poles or ceilings. The NPOE-SPL-G-5VMU supports a wide range of input voltages from 36VDC to 57VDC and has a fixed USB output of 5VDC.
Simple Plug-and-Play Installation Has the Splitter Connected in Minutes No configuration or software is required to add the NPOE-SPL-G-5VMU to your LAN. It complies with 802.3af (PoE), 802.3 (Ethernet), 802.3u (Fast Ethernet) and 802.3ab (Gigabit Ethernet) standards.
Typical Applications
Install an Alexa-enabled device or VoIP phone in an area without a standard power connection
Fill in Wi-Fi dead spots in your office with a wireless access point connected to your LAN
Set up digital signage in a mall, arena, office building or theater
Connect security cameras and other A/V surveillance equipment in a video wall
System Requirements
IEEE 802.3af/at-compliant PoE injector or switch
Existing or newly installed Cat5e/6/6a cabling
A network device with a 5V 1a USB Micro-B power port
Product Type: Signal Splitter
Interfaces/Ports:
Network (RJ-45): Yes
USB: Yes
Number of Network (RJ-45) Ports: 1
Media & Performance:
Maximum Operating Distance: 328 ft
Power Description:
Input Voltage: 5 V DC
Physical Characteristics:
Height: 0.9"
Width: 3.2"
Depth: 1.1"
Weight (Approximate): 1.76 oz
Miscellaneous:
Package Contents:
NPOE-SPL-G-5VMU PoE to USB Micro-B and RJ45 Active Splitter
Quick Start Guide
Environmentally Friendly: Yes
Environmental Certification: RoHS
Environmental Certification: REACH
Country of Origin: China
Warranty:
Limited Warranty: 3 Year
