Marketing Information: Industrial-grade switch expands Ethernet connectivity to factory floors and other environments with space constraints and wide temperature ranges.
Features | 5-Port Unmanaged Ethernet Switch Connects Your Devices to a LAN This space-saving Tripp Lite switch transmits data over an Ethernet network. Five auto-negotiating 10/100 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network.
Ruggedized Metal Housing Built to Last in Harsh Environments The compact NFI-U05 adds 10/100 Mbps Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 degrees to 167 degrees Fahrenheit.
Unmanaged Switch Requires Little to No Configuration Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NFI-U05 supports MAC address autolearning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plugand-play functionality. IEEE 802.3x flow control allows smooth transmission of large files.
Flexible Mounting Options The open-type device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. It may also be wall mounted using the rear mounting holes. A 3-pin 12-48VDC terminal block supplies power input. Device power must be supplied by SELV circuit.
TAA-Compliant for GSA Schedule Purchases The NFI-U05 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Product Type: Ethernet Switch
Interfaces/Ports:
Total Number of Network Ports: 5
Network (RJ-45): Yes
Port/Expansion Slot Details: 5 x Fast Ethernet Network
Media & Performance:
Media Type Supported: Twisted Pair
Ethernet Technology: Fast Ethernet
Network Technology: 10/100Base-T
Network & Communication:
Layer Supported: 2
Networking Standards: IEEE 802.3
Networking Standards: IEEE 802.3u
Networking Standards: IEEE 802.3x
Management & Protocols:
Manageable: No
Power Description:
Power Consumption: 3 W
Physical Characteristics:
Product Material: Aluminum
Form Factor: DIN Rail Mountable
Form Factor: Wall Mountable
Height: 4.3"
Width: 0.9"
Depth: 2.9"
Weight (Approximate): 6.70 oz
Miscellaneous:
Package Contents:
NFI-U05 Ethernet Switch
DIN Rail-mounting Clip
Owner's Manual
Environmentally Friendly: Yes
Environmental Certification: RoHS
Environmental Certification: REACH
Country of Origin: Taiwan
TAA Compliant: Yes
Warranty:
Limited Warranty: 3 Year

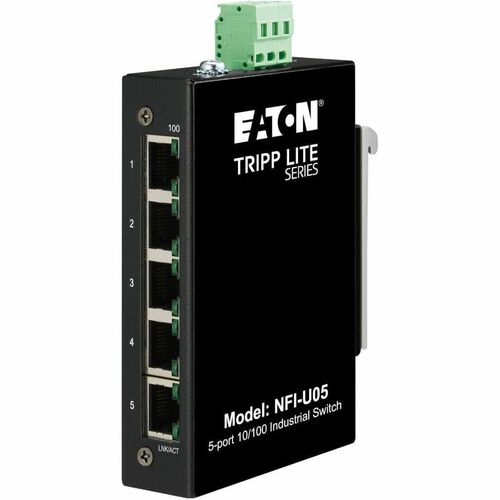

NFI-U05 Image Gallery:
