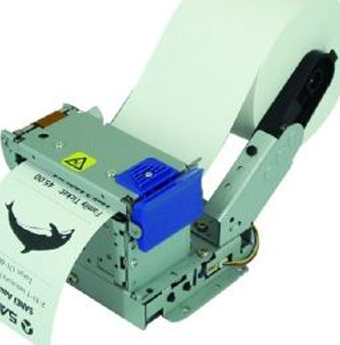

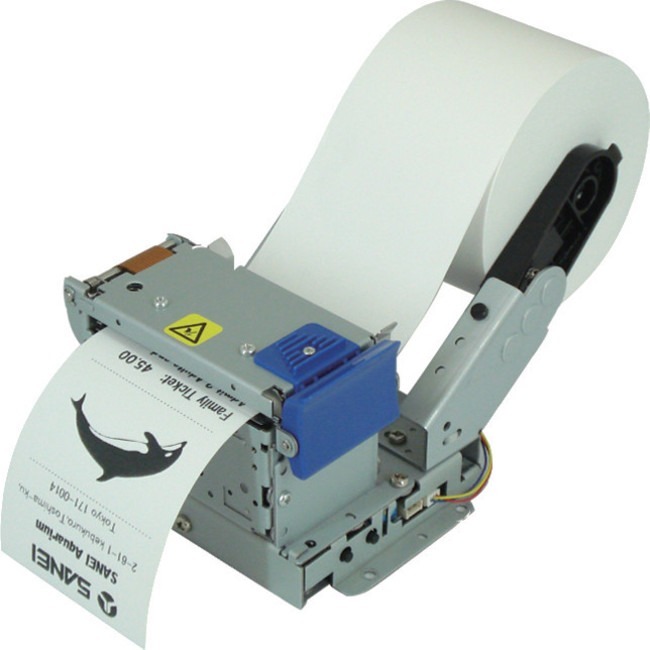

Product Name: 2 Inch Kiosk Printer, Vertical Orientation
Marketing Information: Two Inch Thermal Kiosk Receipt Printers
The SK1-20 two-inch series provides dependable, maintenance-free printers that have a fast print speed of 200mm/sec with 203 dpi resolution.
It comes in either standard format (horizontal orientation) with and without presenter, drop-in paper loading without presenter, or vertical format (vertical orientation) with and without front paper loading. Both standard and vertical formats come equipped with RS-232C and USB interface which integrates with many commonly used kiosk solutions. For kiosks where space is a concern, the SK1-22 printers offer a compact design that can fit into a variety of applications.
The SK1-24 vertical format printer with front paper loading feature is specifically designed for gas pump application. Available options include large paper roll holder and bezel paper detector for the entire SK1-20 series.
Product Type: Direct Thermal Printer
Technical Information:
Recommended Use: Receipt Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 7.87 in/s
Maximum Print Resolution (dpi): 203
Maximum Print Width: 2.20"
Barcode Symbology Supported: JAN-8
Barcode Symbology Supported: JAN-13
Barcode Symbology Supported: Code 39
Barcode Symbology Supported: ITF
Barcode Symbology Supported: Codabar
Barcode Symbology Supported: Code 128
Barcode Symbology Supported: UPC-A
Barcode Symbology Supported: UPC-E
Barcode Symbology Supported: QR Code
Barcode Symbology Supported: Maxi Code
Barcode Symbology Supported: Micro PDF-417
Barcode Symbology Supported: PDF-417
Barcode Symbology Supported: Data Matrix
Interfaces/Ports:
Serial Port: Yes
USB: Yes
Cutter:
Cutter: Yes
Cutting Method: Automatic
Media Types & Handling:
Media Type: Ticket
Media Type: Receipt
Maximum Label Width: 2.36"
Power Description:
Power Source: Power Adapter
Input Voltage: 24 V DC
Physical Characteristics:
Height: 5.7"
Width: 4.1"
Depth: 3.4"
Miscellaneous:
Platform Supported: PC
Certifications & Standards:
CE
FCC
VCCI
