Marketing Information: 8kVA/7.2kW/208V Battery Backup for IT Installations and Edge Networks This 9PX rack-mount online double-conversion UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable IT equipment or destroy data. The 9PX8KTF5 is superlative power management for education, commercial, financial or healthcare networking components, including Cisco switches and servers. Expandable Battery Backup Keeps You Operational Through Power Outages Valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. You can also connect up to five extended battery modules (9PXEBM240RT, sold separately) for hours of extended runtime or up to 12 EBMs with the optional 3U rack-mount 240VDC supercharger (SC240RT, sold separately). The included 9PX maintenance bypass (MBP11K208) lets you service or replace the entire UPS without powering down connected equipment. Included Gigabit Network Interface Offers 24/7 Remote Access The NETWORK-M2 Gigabit network card enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. The optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions. NEMA Outlets Protect Your Connected Components Two L6-30R and 18 5-20R managed outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. The 9PX8KTF5 also supports hardwired output.
Product Type: Double Conversion Online UPS
Technical Information:
Plug/Connector Type: Hardwired
Receptacle Type: NEMA L6-30R
Receptacle Type: NEMA 5-20R
Receptacle Type: Hardwired
Receptacle Detail: 2 x NEMA L6-30R
Receptacle Detail: 18 x NEMA 5-20R
Transfer Time: 0 ns
Overload Protection: Yes
Power Description:
Load Capacity: 8000 VA
Input Voltage: 110 V AC
Input Voltage: 220 V AC
Output Voltage: 200 V AC
Output Voltage: 208 V AC
Output Voltage: 220 V AC
Output Voltage: 230 V AC
Output Voltage: 240 V AC
Output Voltage: 250 V AC
Input Frequency: 70 Hz
Output Frequency: 60 Hz
Management:
Network Management: SNMP Manageable
Battery Information:
Battery Characteristics: Maintenance-free/Sealed
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 5 Minute
Backup/Run Time (Half Load): 16 Minute
Physical Characteristics:
Form Factor: Rack/Tower
Rack Height: 9U
Height: 15.3"
Width: 17"
Depth: 30"
Weight (Approximate): 300 lb
Miscellaneous:
Package Contents:

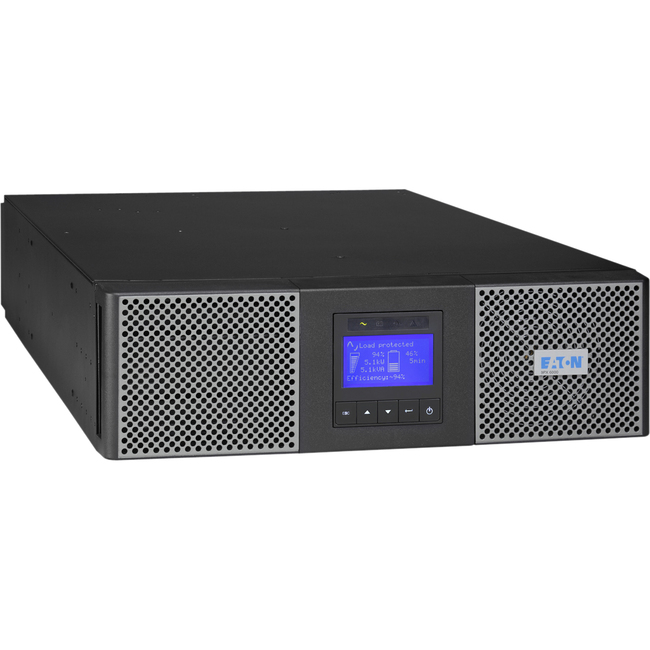

9PX 8kVA Tower/Rack Mountable UPS
9PX8KPM 8 kVA 3U UPS Power Module
9PXEBM240RT 3U Extended Battery Module
MBP11K208 Rear-Mount Maintenance Bypass
9PXTFMR5 120V Stepdown Transformer
Network-MS Web/SNMP Card
4-Post Rail Kit
User Manual
Quick Start Guide
Tower Pedestals
Intelligent Power Software Suite CD
RS-232 Serial Cable
USB Cable
Cable Gland For Hardwire Conection
Phillips Head Screw Driver
Software Included: Eaton Intelligent Power Software
