The Omni reader is originally designed for the demanding Access Control and Time & Attendance markets. Its die cast metal base, stainless steel wear plate, and impact-resistant housing make Omni ideal for the growing market of self-service and un-attended applications. The Omni reads up to three tracks of magnetic information with a single swipe in either direction. Omni reads most bar code symbologies; both visible or infrared bar code data and/or MagStripe data, both in a single swipe. It has a beeper and three-color LED indicator to signal a successful read. The reader is programmable so that the data format and intelligent interface output can be programmed & configured to match application communication requirements.
Product Type: Magnetic Stripe Reader
Technical Information:
Magnetic Stripe Track Configuration: Dual Track
Magnetic Stripe Track Number: Track 1
Magnetic Stripe Track Number: Track 2
Minimum Swipe Speed: 3 in/s
Maximum Swipe Speed: 60 in/s
Number of Swipes (Head Life): 1000000
Interfaces/Ports:
Wiegand: Yes
Power Description:
Input Voltage: 5 V DC
Physical Characteristics:
Product Color: Black
Height: 1.4"
Width: 2.1"
Length: 5"
Weight (Approximate): 1.40 lb
Miscellaneous:
Additional Information:
Reads both magnetic stripe and barcode media
Reliable for over 1,000,000 card swipes
Superior reading of high jitter, scratched, and worn MagStripe cards
Metal base can be securely mounted with cable exits from side, end, or bottom
Weatherproof, sealed or extended temperature versions are available
Dual sided MagStripe head versions option
Red or infrared bar code reader option

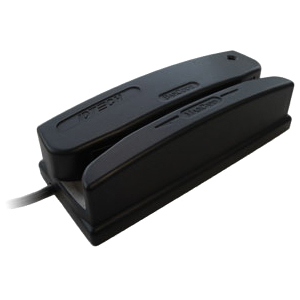

WCR3297-612 Image Gallery:
