Home > Point-of-Sale-Computing > Monitors > Elo Touch Solutions > Elo 2494L Open Frame Monitors > E330019

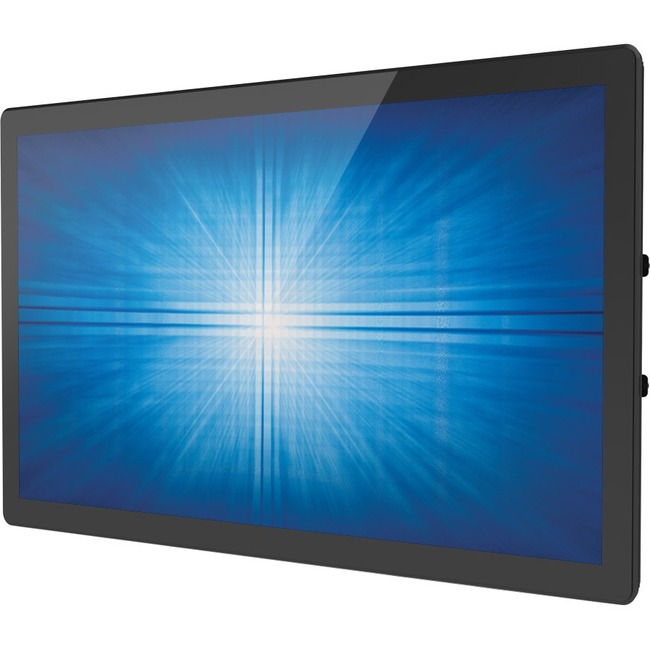

E330019 - Elo 2494L Open Frame Monitors

The Elo 2494L 23.8-inch open-frame LCD touchscreen features a slim deign and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. The 2494L provides stable, dirt-free opration with outstanding image clarity and light transmission for accurate touch reponses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casion and amusement, retail self-service and industrial automation environments.

Manufacturer: Elo Touch Solutions

Item Description: 2494L 23.8" LCD OpenFrame Intellitouch - E330019

Elo 2494L 23.8-inch wide FHD LCD WVA (LED Backlight), Open Frame, HDMI, VGA & Display Port video interface, IntelliTouch, USB & RS232 touch controller interface, Clear, No power brick, Worldwide - E330019




Image, Data Sheet & Marketing Description may differ from the actual product of part# E330019

     Data Sheet (PDF)


    Mfr Part#: E330019
    Also Known As#: ELO-E330019
    Price:  $763.81
    Availability: In Stock
    Condition:  New
    Warranty: With Original Manufacturer Warranty

    Qty:

Manufacturer Part# UPC Weight (lb) MSRP
E330019 0815335025952 20 $786.00

DIMENSION UNSPSC HARMONIZATION CODE COUNTRY OF ORIGIN
43211903 8528520000 CN





General Information:

  Manufacturer: Elo Touch Solutions, Inc
  Manufacturer Part Number: E330019
  Manufacturer Website Address: http://www.elotouch.com
  Brand Name: Elo
  Product Model: 2494L
  Product Name: 2494L 23.8" Open Frame Touchscreen (Rev B)
  Marketing Information:

The Elo 2494L 24-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 2494L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.

Easily integrated.

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.

Touch ready.

Available with a choice of industry-leading touch technologies, in single-, dual- or multi-touch technology, including IntelliTouch® surface acoustic wave (SAW) with single- and dual-touch, IntelliTouch single-touch SAW with zero-bezel, and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves.

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

Other features.
  • Viewing angle of 178° (h) x 178° (v), for sharp colors and graphics in both portrait and landscape modes
  • Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
  • 10-touch TouchPro™ projected capacitive (PCAP) with two-touch Thru-glass capabilities
  • Display Port and VGA video interfaces
  Product Type: Open-frame LCD Touchscreen Monitor

Technical Information:

  Viewable Screen Size: 23.8"
  Screen Mode: Full HD
  Response Time: 16 ms
  Aspect Ratio: 16:9
  Mount Type: Front Mount
  Backlight Technology: LED

Video:

  Maximum Resolution: 1920 x 1080
  Color Supported: 16.7 Million Colors
  Contrast Ratio: 3,000:1
  Brightness: 250 Nit

Touchscreen Information:

  Touchscreen Type: IntelliTouch Surface Wave

Interfaces/Ports:

  HDMI: Yes
  USB: Yes
  VGA: Yes
  DisplayPort: Yes

Power Description:

  Operating Power Consumption: 23.70 W

Physical Characteristics:

  Product Color: Black
  VESA Mount Compatible: Yes
  Height: 13.5"
  Width: 22.4"
  Depth: 1.5"
  Weight (Approximate): 14.10 lb

Miscellaneous:

  Package Contents:
  • 2494L 23.8" Open Frame Touchscreen (Rev B)
  • HDMI cable
  • VGA Cable
  • RJ45 OSD Remote
  • Touch USB Cable
  • User Manual CD
  • Quick Install Guide
  • "L" (Side Mount) Brackets and w/Screws
  • EEI Label
  • Japan Class-B TM info sheet
  Environmentally Friendly: Yes
  Environmental Certification: RoHS
  Environmental Certification: China RoHS
  Environmental Certification: WEEE

Warranty:

  Limited Warranty: 3 Year
 E330019 Image Gallery:

Elo Touch Solutions [E330019]

Elo 2494L Open Frame Monitors (E330019)

2494L 23.8" LCD OpenFrame Intellitouch (E330019)

2494L 23.8" LCD OpenFrame Intellitouch {E330019}

E330019
