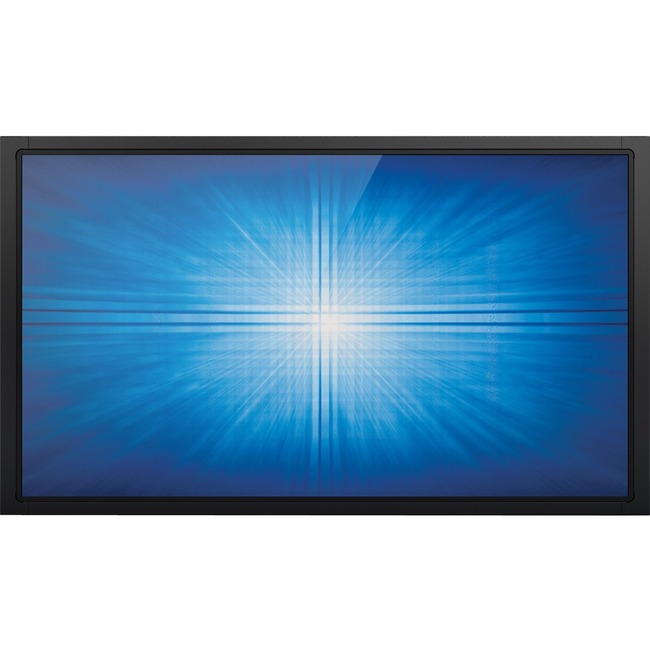

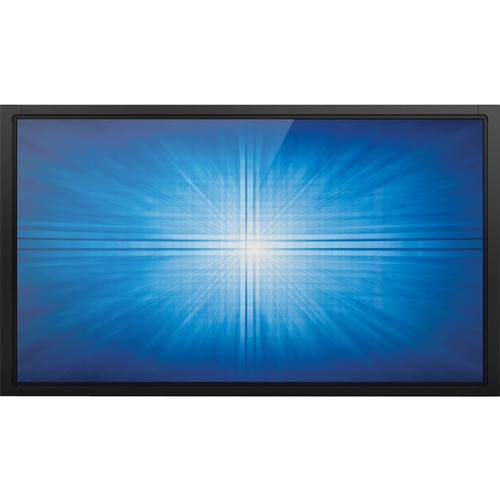

E327528 - Elo 2294L Open Frame Monitors
The Elo 2294L 21.5-inch open-frame LCD touchscreen features a slim deign and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. The 2294L provides stable, dirt-free opration with outstanding image clarity and light transmission for accurate touch reponses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casion and amusement, retail self-service and industrial automation environments.
Manufacturer: Elo Touch Solutions
Item Description: NC/NR 2294L OF INTEL-DT VGA/HDMI NO PSU - E327528
Elo 2294L 21.5" Open-frame LCD Touchscreen Monitor - 16:9 - 14 ms - IntelliTouch Surface WaveMulti-touch Screen - 1920 x 1080 - Full HD - 16.7 Million Colors - 1,000:1 - 250 Nit - LED Backlight - HDMI - USB - VGA - DisplayPort - Black - RoHS, China RoHS, WEEE - 3 Year --
Elo 2294L 21.5-inch wide FHD LCD WVA (LED Backlight), Open Frame, HDMI, VGA & Display Port video interface, IntelliTouch Plus Dual Touch, USB touch controller interface, Clear, No power brick, Worldwide - E327528
Image, Data Sheet & Marketing Description may differ from the actual product of part# E327528
Data Sheet (PDF)
|
|
|
Manufacturer Part#
|
UPC
|
Weight (lb)
|
MSRP
|
E327528
|
0815335025853
|
19
|
$653.00
|
DIMENSION
|
UNSPSC
|
HARMONIZATION CODE
|
COUNTRY OF ORIGIN
|
|
43211903
|
8528520000
|
CN
|
|
General Information:
|
Manufacturer: Elo Touch Solutions, Inc
|
Manufacturer Part Number: E327528
|
Manufacturer Website Address: http://www.elotouch.com
|
Product Name: 2294L 21.5" Open Frame Touchscreen (Rev B)
|
Marketing Information: The Elo 2294L 21.5-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 2294L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.
Touch ready.
Available with a choice of industry-leading touch technologies, in single-, dual- or multi-touch technology, including IntelliTouch® single- and dual-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features. - High definition LCD display offers ultimate HD interactivity, clarity and resolution
- 10-touch TouchPro projected capacitive with two-touch Thru-glass capabilities that passes UL-60950 & IK-07 Impact testing
- Viewing angle of 178° (h) x 178° (v), for sharp colors and graphics in both portrait and landscape modes
- Display Port and VGA video interfaces
|
Product Type: Open-frame LCD Touchscreen Monitor
|
Technical Information:
|
Viewable Screen Size: 21.5"
|
Mount Type: Rack-mountable
|
Backlight Technology: LED
|
Video:
|
Maximum Resolution: 1920 x 1080
|
Color Supported: 16.7 Million Colors
|
Touchscreen Information:
|
Touchscreen Type: IntelliTouch Surface Wave
|
Interfaces/Ports:
|
HDMI: Yes
|
Power Description:
|
Operating Power Consumption: 25 W
|
Physical Characteristics:
|
Product Color: Black
|
VESA Mount Compatible: Yes
|
Weight (Approximate): 11.24 lb
|
Miscellaneous:
|
Package Contents: - 2294L 21.5" Open Frame Touchscreen (Rev B)
- HDMI cable
- VGA Cable
- RJ45 OSD Remote
- Touch USB Cable
- User Manual CD
- Quick Install Guide
- "L" (Side Mount) Brackets and w/Screws
- EEI Label
- Japan Class-B TM info sheet
|
Environmentally Friendly: Yes
|
Environmental Certification: RoHS
|
Environmental Certification: China RoHS
|
Environmental Certification: WEEE
|
Warranty:
|
Limited Warranty: 3 Year
|
