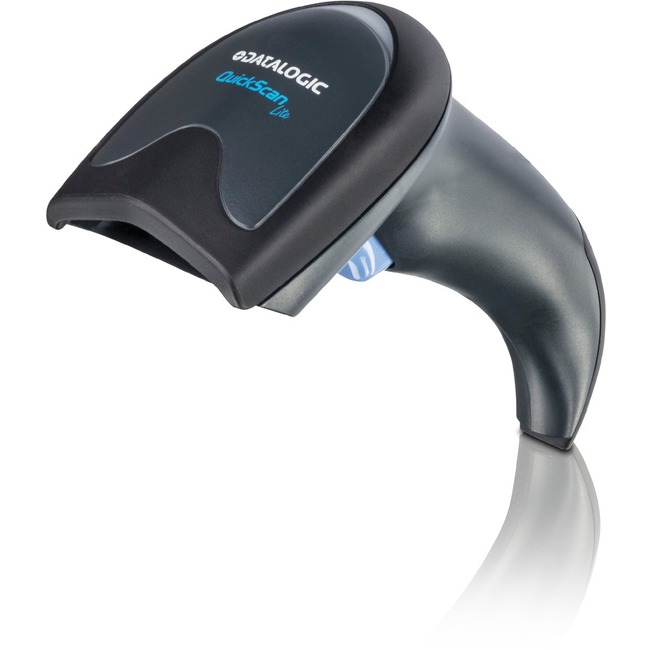

Product Name: QuickScan I Lite QW2470 Handheld Barcode Scanner
Marketing Information: AREA IMAGING TECHNOLOGY The QuickScan Lite QW2400 2D area imager is an entry level scanner specifically designed for reading long and truncated 1D codes and larger 2D codes from close distance. The QW2400 imager has an extra-wide Field of View (FOV) which captures these challenging 1D and 2D codes at a nominal distance using different scan angles, meeting the scanning needs in Retail, Light Manufacturing, Document/Bill Processing and Banking/Finance. The QuickScan Lite 2D imager is the most affordable area imager with the best performance in its class.
DESIGNED WITH THE USER IN MIND The QW2400 imager is small, lightweight and its ergonomic design is comfortable to use in daily operations. It offers snappy reading performance on most commonly used 1D and 2D codes, whether printed or displayed on a mobile device. The white illumination combined with the blue aiming dot provides users with a visible and clear aiming system without irritating the user's eyes. Datalogic's patented 'Green Spot' technology provides goodread feedback in noisy environments and the internal beeper can be silenced for quiet environments.
SIMPLICITY IS THE BEST The QW2400 area imager is available in two interface options: USB or Keyboard Wedge/RS-232. Customers can purchase the scanner only or separate certified kits which include a cable and stand. All accessories can be shared with the QW2100 linear imager, making it easier for customers to upgrade from 1D to 2D readers.
Product Type: Barcode Scanner
Technical Information:
Connectivity Technology: Cable
Scanning Capability: 1D
Scanning Capability: 2D
Barcode Symbology Supported:
1D / LINEAR CODES:
Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D CODES:
Aztec Code
Aztec Mesas
Data Matri
MaxiCode
QR Code
Micro QR Code
China Han Xin Code
POSTAL CODES:
Australian Post
British Post
Canadian Post
China Post
Japanese PostIMB
KIX Post
Planet Code
Postnet
Royal Mail Code (RM4SCC)
STACKED CODES:
EAN/JAN Composites
GS1 DataBar Composites
GS1 DataBar Expanded Stacked
GS1 DataBar Stacked
GS1 DataBar Stacked Omnidirectional
MacroPDF
MicroPDF417
PDF417
UPC A/E Composites
Image Sensor Type: Imager
Interfaces/Ports:
Host Interface: Keyboard Wedge
Physical Characteristics:
Form Factor: Handheld
Product Color: Black
Height: 6.7"
Width: 2.8"
Depth: 2.6"
Weight (Approximate): 4.23 oz
Miscellaneous:
Package Contents:
QuickScan I Lite QW2470 Handheld Barcode Scanner
Straight KBW Cable
Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Environmental Certification: China RoHS
Warranty:
Limited Warranty: 3 Year
QW2470-BKK3 Image Gallery:
DATALOGIC SCANNING [QW2470-BKK3]
DATALOGIC ADC QUICKSCAN LITE 2D IMAGER (QW2470-BKK3)
