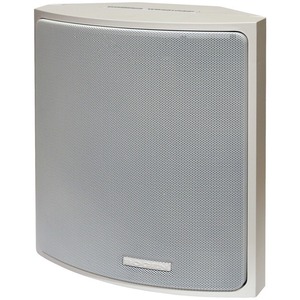

The Bogen Nyquist Gen-2 Series NQ-S1810WT-G2 VoIP wall baffle speaker and NQ-S1810CT-G2 ceiling speaker provide superior HD audio quality and seamless integration into the E7000 ecosystem. There is no need for external amplifiers, traditional intercom wiring, or transformer taps to manually set or adjust. Connect the speakers via Cat5 to a PoE Switch or PoE Injector, and they are ready to operate. Volume is controlled via the E7000 GUI Dashboard. These Gen-2 VoIP speakers also offer a Form-C relay output for controlling/overriding third-party devices like AV sources. As one would expect from Bogen, the HD audio quality is superb, with excellent incoming and outgoing intelligibility. Many two-way speakers use the speaker itself as the microphone, resulting in poor talkback audio quality. The Nyquist Series VoIP speakers use a separate high-performance MEMS microphone to achieve superior talkback audio.
FEATURES
10/100 Ethernet connection
PoE Class-3 - no local power required, IEEE 802.3af compliant
DHCP deployment for easy installation
Pre-assembled for easy installation
10W integrated amplifier
Reset button for restoring factory settings
Form-C SPDT type 2A @ 30V DC dry contact relay output
DSP-based noise rejection and voice bandwidth optimization
MEMS digital microphone for superior talkback audio
CAN Bus 2.0 Interface connects to Nyquist Digital Call Switches (NQ-E7020)
9.2" W x 5.2" D x 10" H (Wall Baffle)
13" W x 3.25" dia. (Ceiling)
AVAILABLE CEILING MOUNT ACCESSORIES
RE84 Recessed Enclosure (back box)
TB8 Tile Bridge
MR8 Mounting Ring (for installations where RE84 is not used)
A & E SPECIFICATIONS
The Nyquist VoIP speaker NQ-S1810CT-G2 (ceiling) or NQ-S1810WT-G2 (wall baffle) with talkback capability shall not require traditional intercom wiring or transformer taps to manually set or adjust volume. Connecting them via Cat5 to a PoE Switch or PoE Injector on the system's network allows them to be ready to be programmed into the system. Volume control of the 10W integrated amplifier shall be controlled via the device's Web UI. The VoIP speakers shall contain one SPDT type control relay output rated at 2A @ 30V DC with the following connections: C (Normally Closed); Common; NO (Normally Open); and G (Ground). The VoIP speakers use a wideband Opus codec for audio distribution. Use of the Opus codec, along with G.722, allows for High Definition audio. Systems that don't use Opus codecs for audio distribution shall not be considered equal. Nyquist VoIP speakers shall be equipped with a digital MEMS microphone to achieve superior talkback audio when enabled. VoIP Speakers that utilize the speaker as the microphone shall not be considered equal. The VoIP speakers shall contain a Reset button for restoring the appliance back to its factory settings.
