Item Description:BUFFER, ATTENUATOR, EXPANDER FOR AMPLIFI - BUFEX
A continuously variable speaker attenuator that can remotely control the volume of network speakers. Drive up to 150 self-amplified speaker inputs. 100V, 70V, 25V, and page port level selectable input. Bypass trim control for emergency paging (12dB of preset control over level of bypass announcements). Mounts in a single gang electrical box. - BUFEX
Image, Data Sheet & Marketing Description may differ from the actual product of part# BUFEX
Mfr Part#: BUFEX
Also Known As#: BOG-BUFEX
Price:$41.31 Availability:
Dropship / Preorder
Condition:
New
Warranty: With Original Manufacturer Warranty
The BUFEX is a continuously variable speaker attenuator that can remotely control the volume of a network of speakers. The BUFEX also provides output buffering for up to 150 self-amplified speaker inputs and allows speaker system expansion of existing 100V, 70V, or 25V central amplifier systems. The BUFEX includes a bypass function that can override the volume control knob setting when activated by a contact closure or open collector output. This allows emergency announcements to be heard through all speakers in a system even if the volume control knob setting is set low or off. A PCB-mounted bypass trim control adjusts the volume when in bypass mode with a maximum of 12 dB of attenuation. The BUFEX fits into a single gang electrical box.
Continuously variable attenuator
Drive up to 150 self-amplified speaker inputs
100V, 70V, 25V, and page port level selectable input
Bypass trim control for emergency paging (12 dB of preset control over level of bypass announcements)
Mounts in a single gang electrical box

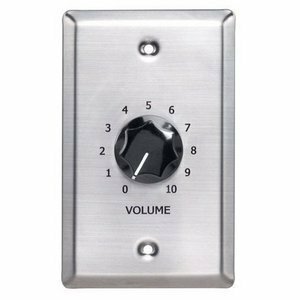

Rugged and attractive stainless steel plate with engraved lettering
