This is an attenuator that regulates audio level over an entire 70V or 25V speaker array, and is capable of handling up to 10W loads (max). The attenuator installs into a Single-gang electrical box, features 10 attenuation levels, and is capable of bypassing attenuation altogether. - ATP10
Image, Data Sheet & Marketing Description may differ from the actual product of part# ATP10
Mfr Part#: ATP10
Also Known As#: BOG-ATP10
Price:$49.42 Availability:
Dropship / Preorder
Condition:
New
Warranty: With Original Manufacturer Warranty

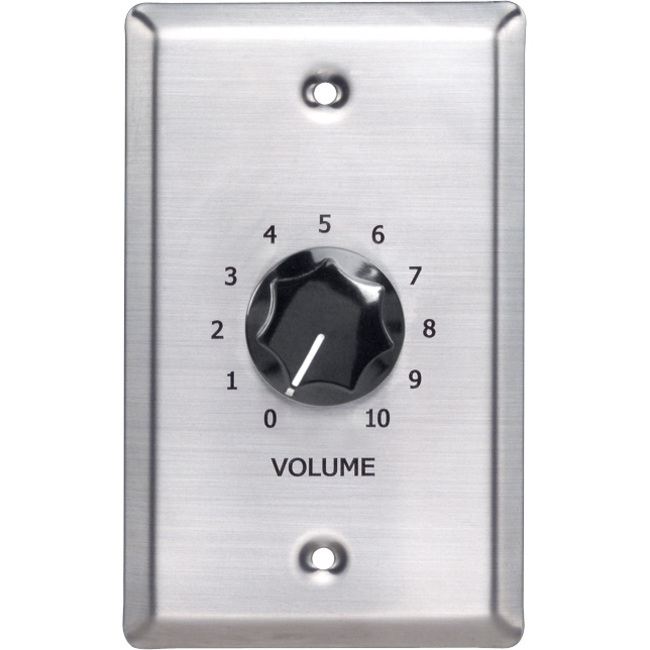

These 10-step plus "OFF" speaker attenuators allow the volume of a network of 25V or 70V speakers to be controlled from a remote location. The ATP10 attenuator can handle speaker loads of up to 10W (max.) and the ATP35 attenuator can handle speaker loads of up to 35W (max.). The ATP10 fits into a single gang electrical box and the ATP35 attenuator fits into a double gang electrical box.
Each unit includes a bypass function for overriding the volume control knob setting when activated by 9V to 30V DC. Applying 9V to 30V DC between pins labeled D+ and D- bypasses the volume control function and provides full volume audio to the speakers.
